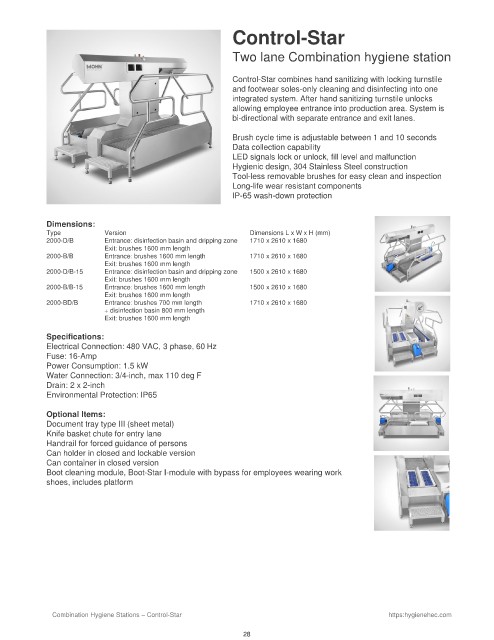

Control-Star

Two lane Combination hygiene station

Control-Star combines hand sanitizing with locking turnstile
and footwear soles-only cleaning and disinfecting into one
integrated system. After hand sanitizing turnstile unlocks
allowing employee entrance into production area. System is
bi-directional with separate entrance and exit lanes.

Brush cycle time is adjustable between 1 and 10 seconds
Data collection capability
LED signals lock or unlock, fill level and malfunction
Hygienic design, 304 Stainless Steel construction
Tool-less removable brushes for easy clean and inspection
Long-life wear resistant components
IP-65 wash-down protection

Dimensions:
Type Version Dimensions L x W x H (mm)
2000-D/B Entrance: disinfection basin and dripping zone 1710 x 2610 x 1680
Exit: brushes 1600 mm length
2000-B/B Entrance: brushes 1600 mm length 1710 x 2610 x 1680
Exit: brushes 1600 mm length
2000-D/B-15 Entrance: disinfection basin and dripping zone 1500 x 2610 x 1680
Exit: brushes 1600 mm length
2000-B/B-15 Entrance: brushes 1600 mm length 1500 x 2610 x 1680
Exit: brushes 1600 mm length
2000-BD/B Entrance: brushes 700 mm length 1710 x 2610 x 1680
+ disinfection basin 800 mm length
Exit: brushes 1600 mm length

Specifications:
Electrical Connection: 480 VAC, 3 phase, 60 Hz
Fuse: 16-Amp
Power Consumption: 1.5 kW
Water Connection: 3/4-inch, max 110 deg F
Drain: 2 x 2-inch
Environmental Protection: IP65

Optional Items:
Document tray type III (sheet metal)
Knife basket chute for entry lane
Handrail for forced guidance of persons
Can holder in closed and lockable version
Can container in closed version
Boot cleaning module, Boot-Star I-module with bypass for employees wearing work
shoes, includes platform

Combination Hygiene Stations – Control-Star https:hygienehec.com

28
