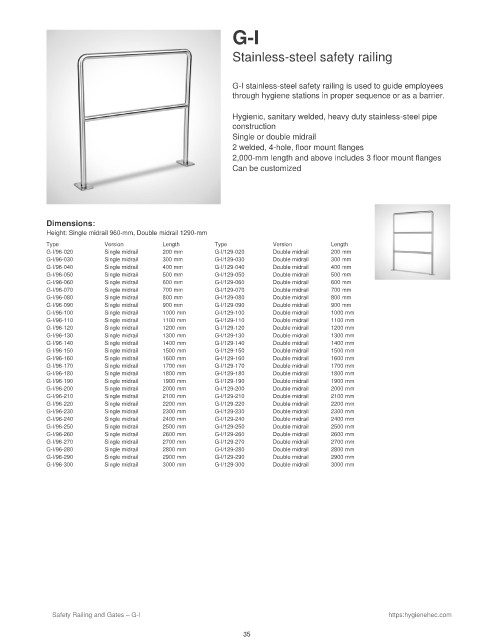

G-I

Stainless-steel safety railing

G-I stainless-steel safety railing is used to guide employees
through hygiene stations in proper sequence or as a barrier.

Hygienic, sanitary welded, heavy duty stainless-steel pipe
construction
Single or double midrail
2 welded, 4-hole, floor mount flanges
2,000-mm length and above includes 3 floor mount flanges
Can be customized

Dimensions:
Height: Single midrail 960-mm, Double midrail 1290-mm
Type Version Length Type Version Length
G-I/96-020 Single midrail 200 mm G-I/129-020 Double midrail 200 mm
G-I/96-030 Single midrail 300 mm G-I/129-030 Double midrail 300 mm
G-I/96-040 Single midrail 400 mm G-I/129-040 Double midrail 400 mm
G-I/96-050 Single midrail 500 mm G-I/129-050 Double midrail 500 mm
G-I/96-060 Single midrail 600 mm G-I/129-060 Double midrail 600 mm
G-I/96-070 Single midrail 700 mm G-I/129-070 Double midrail 700 mm
G-I/96-080 Single midrail 800 mm G-I/129-080 Double midrail 800 mm
G-I/96-090 Single midrail 900 mm G-I/129-090 Double midrail 900 mm
G-I/96-100 Single midrail 1000 mm G-I/129-100 Double midrail 1000 mm
G-I/96-110 Single midrail 1100 mm G-I/129-110 Double midrail 1100 mm
G-I/96-120 Single midrail 1200 mm G-I/129-120 Double midrail 1200 mm
G-I/96-130 Single midrail 1300 mm G-I/129-130 Double midrail 1300 mm
G-I/96-140 Single midrail 1400 mm G-I/129-140 Double midrail 1400 mm
G-I/96-150 Single midrail 1500 mm G-I/129-150 Double midrail 1500 mm
G-I/96-160 Single midrail 1600 mm G-I/129-160 Double midrail 1600 mm
G-I/96-170 Single midrail 1700 mm G-I/129-170 Double midrail 1700 mm
G-I/96-180 Single midrail 1800 mm G-I/129-180 Double midrail 1800 mm
G-I/96-190 Single midrail 1900 mm G-I/129-190 Double midrail 1900 mm
G-I/96-200 Single midrail 2000 mm G-I/129-200 Double midrail 2000 mm
G-I/96-210 Single midrail 2100 mm G-I/129-210 Double midrail 2100 mm
G-I/96-220 Single midrail 2200 mm G-I/129-220 Double midrail 2200 mm
G-I/96-230 Single midrail 2300 mm G-I/129-230 Double midrail 2300 mm
G-I/96-240 Single midrail 2400 mm G-I/129-240 Double midrail 2400 mm
G-I/96-250 Single midrail 2500 mm G-I/129-250 Double midrail 2500 mm
G-I/96-260 Single midrail 2600 mm G-I/129-260 Double midrail 2600 mm
G-I/96-270 Single midrail 2700 mm G-I/129-270 Double midrail 2700 mm
G-I/96-280 Single midrail 2800 mm G-I/129-280 Double midrail 2800 mm
G-I/96-290 Single midrail 2900 mm G-I/129-290 Double midrail 2900 mm
G-I/96-300 Single midrail 3000 mm G-I/129-300 Double midrail 3000 mm

Safety Railing and Gates – G-l https:hygienehec.com

35
