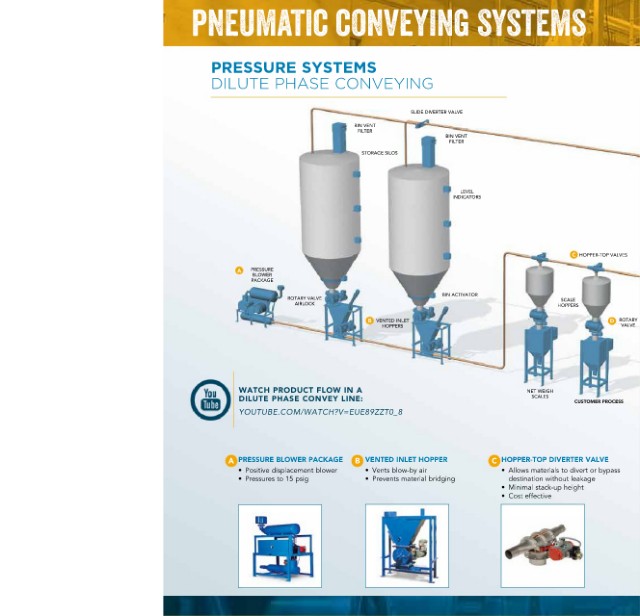

pneumatic conveying systems
PRESSURE SYSTEMS
DILUTE PHASE CONVEYING
SLIDE DIVERTER VALVE
BIN VENT FEATURES
FILTER
BIN VENT • SINGLE PICK-UP AREA
FILTER
STORAGE SILOS • MULTIPLE DESTINATIONS
• MOST EFFICIENT CONVEYING OPTION
• LOW CAPITAL COST
LEVEL
INDICATORS
C HOPPER-TOP VALVES
E SLIDE DIVERTER VALVE
FILTER RECEIVER
A PRESSURE
BLOWER
PACKAGE
BIN ACTIVATOR
ROTARY VALVE SCALE
AIRLOCK HOPPERS
B VENTED INLET D ROTARY
HOPPERS VALVE
F BULK BAG FILLER
WATCH PRODUCT FLOW IN A NET WEIGH SYSTEM
SCALES
DILUTE PHASE CONVEY LINE: CUSTOMER PROCESS CONTROLS
YOUTUBE.COM/WATCH?V=EUE89ZZT0_8
A PRESSURE BLOWER PACKAGE B VENTED INLET HOPPER C HOPPER-TOP DIVERTER VALVE D ROTARY VALVE AIRLOCK E SLIDE DIVERTER VALVE F BULK BAG FILLING
• Positive displacement blower • Vents blow-by air • Allows materials to divert or bypass • Available in various sizes and materials • Divert or converge material • 100 lb to 3000 lb capacity
• Pressures to 15 psig • Prevents material bridging destination without leakage • Controls material feed into convey line • Airtight seal between inlet and outlet • Bags, drums or boxes
• Minimal stack-up height • Manages pressure differential between • Reduced material damage
• Cost effective convey line and feed source
