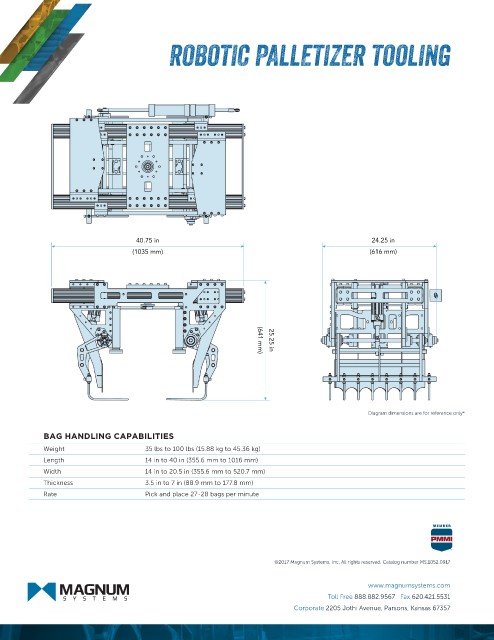

ROBOTIC PALLETIZER TOOLING
40.75 in 24.25 in
(1035 mm) (616 mm)
25.25 in
(641 mm)
Diagram dimensions are for reference only*
BAG HANDLING CAPABILITIES
Weight 35 lbs to 100 lbs (15.88 kg to 45.36 kg)
Length 14 in to 40 in (355.6 mm to 1016 mm)
Width 14 in to 20.5 in (355.6 mm to 520.7 mm)
Thickness 3.5 in to 7 in (88.9 mm to 177.8 mm)
Rate Pick and place 27-28 bags per minute
