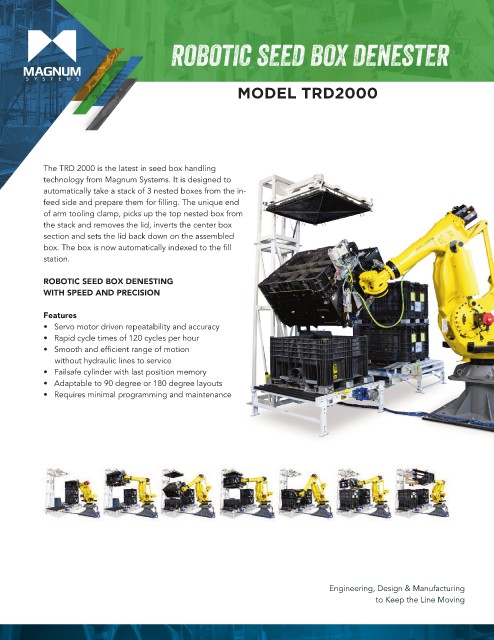

ROBOTIC SEED BOX DENESTER

MODEL TRD2000

The TRD 2000 is the latest in seed box handling
technology from Magnum Systems. It is designed to
automatically take a stack of 3 nested boxes from the in-
feed side and prepare them for filling. The unique end
of arm tooling clamp, picks up the top nested box from
the stack and removes the lid, inverts the center box
section and sets the lid back down on the assembled
box. The box is now automatically indexed to the fill
station.

ROBOTIC SEED BOX DENESTING
WITH SPEED AND PRECISION

Features
• Servo motor driven repeatability and accuracy
• Rapid cycle times of 120 cycles per hour
• Smooth and efficient range of motion
without hydraulic lines to service
• Failsafe cylinder with last position memory
• Adaptable to 90 degree or 180 degree layouts
• Requires minimal programming and maintenance

Engineering, Design & Manufacturing
to Keep the Line Moving
