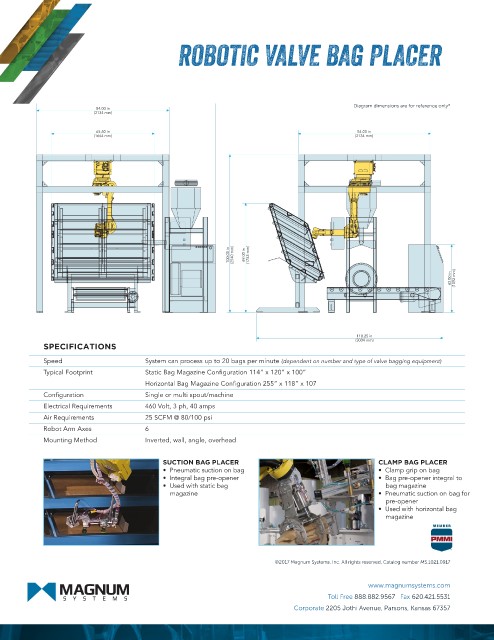

ROBOTIC VALVE BAG PLACER

113.25 in
(2877 mm)
Diagram dimensions are for reference only*
84.00 in
(2134 mm)
65.50 in 84.00 in
(1664 mm) (2134 mm)

100.00 in (2540 mm) 69.00 in (1753 mm)

43.00 in (1092 mm)

118.25 in
(3004 mm)
SPECIFICATIONS
Speed System can process up to 20 bags per minute (dependent on number and type of valve bagging equipment)
Typical Footprint Static Bag Magazine Configuration 114” x 120” x 100”
Horizontal Bag Magazine Configuration 255” x 118” x 107
Configuration Single or multi spout/machine
Electrical Requirements 460 Volt, 3 ph, 40 amps
Air Requirements 25 SCFM @ 80/100 psi
Robot Arm Axes 6
Mounting Method Inverted, wall, angle, overhead

SUCTION BAG PLACER CLAMP BAG PLACER
• Pneumatic suction on bag • Clamp grip on bag
• Integral bag pre-opener • Bag pre-opener integral to
• Used with static bag bag magazine
magazine • Pneumatic suction on bag for
pre-opener
• Used with horizontal bag
magazine
