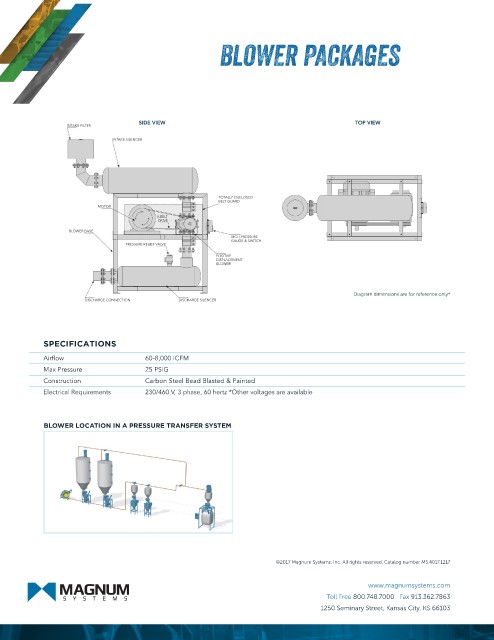

BLOWER PACKAGES
SIDE VIEW TOP VIEW
INTAKE FILTER
INTAKE SILENCER
TOTALLY ENCLOSED
BELT GUARD
MOTOR
V-BELT
DRIVE
BLOWER BASE
HIGH-PRESSURE
GAUGE & SWITCH
PRESSURE RELIEF VALVE
POSITIVE
DISPLACEMENT
BLOWER
Diagram dimensions are for reference only*
DISCHARGE CONNECTION DISCHARGE SILENCER
SPECIFICATIONS
Airflow 60-8,000 ICFM
Max Pressure 25 PSIG
Construction Carbon Steel Bead Blasted & Painted
Electrical Requirements 230/460 V, 3 phase, 60 hertz *Other voltages are available
BLOWER LOCATION IN A PRESSURE TRANSFER SYSTEM
