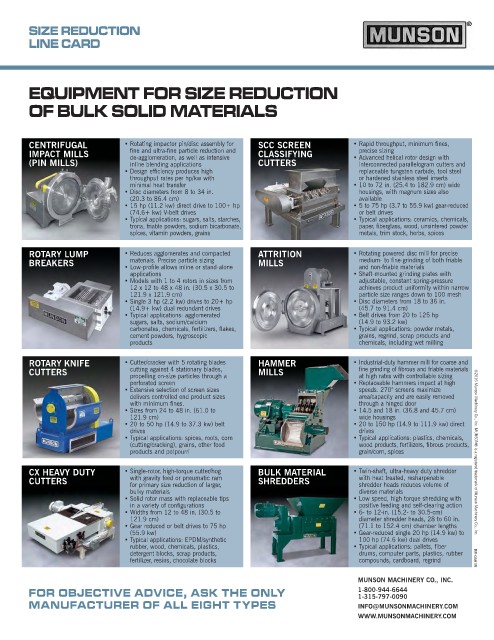

SIZE REDUCTION
LINE CARD
EQUIPMENT FOR SIZE REDUCTION
OF BULK SOLID MATERIALS
CENTRIFUGAL • Rotating impactor pin/disc assembly for SCC SCREEN • Rapid throughput, minimum fines,
precise sizing
IMPACT MILLS fine and ultra-fine particle reduction and CLASSIFYING • Advanced helical rotor design with
de-agglomeration, as well as intensive
(PIN MILLS) inline blending applications CUTTERS interconnected parallelogram cutters and
• Design efficiency produces high replaceable tungsten carbide, tool steel
throughput rates per hp/kw with or hardened stainless steel inserts
minimal heat transfer • 10 to 72 in. (25.4 to 182.9 cm) wide
• Disc diameters from 8 to 34 in. housings, with magnum sizes also
(20.3 to 86.4 cm) available
• 15 hp (11.2 kw) direct drive to 100+ hp • 5 to 75 hp (3.7 to 55.9 kw) gear-reduced
(74.6+ kw) V-belt drives or belt drives
• Typical applications: sugars, salts, starches, • Typical applications: ceramics, chemicals,
trona, friable powders, sodium bicarbonate, paper, fiberglass, wood, unsintered powder
spices, vitamin powders, grains metals, trim stock, herbs, spices
ROTARY LUMP • Reduces agglomerates and compacted ATTRITION • Rotating powered disc mill for precise
BREAKERS materials. Precise particle sizing MILLS medium- to fine-grinding of both friable
• Low-profile allows inline or stand-alone and non-friable materials
applications • Shaft-mounted grinding plates with
• Models with 1 to 4 rotors in sizes from adjustable, constant spring-pressure
12 x 12 to 48 x 48 in. (30.5 x 30.5 to achieves product uniformity within narrow
121.9 x 121.9 cm) particle size ranges down to 100 mesh
• Single 3 hp (2.2 kw) drives to 20+ hp • Disc diameters from 18 to 36 in.
(14.9+ kw) dual redundant drives (45.7 to 91.4 cm)
• Typical applications: agglomerated • Belt drives from 20 to 125 hp
sugars, salts, sodium/calcium (14.9 to 93.2 kw)
carbonates, chemicals, fertilizers, flakes, • Typical applications: powder metals,
cement powders, hygroscopic grains, regrind, scrap products and
products chemicals, including wet milling
ROTARY KNIFE • Cutter/cracker with 5 rotating blades HAMMER • Industrial-duty hammer mill for coarse and
CUTTERS cutting against 4 stationary blades, MILLS fine grinding of fibrous and friable materials
propelling on-size particles through a at high rates with controllable sizing
perforated screen • Replaceable hammers impact at high
• Extensive selection of screen sizes speeds. 270° screens maximize
delivers controlled end product sizes area/capacity and are easily removed
with minimum fines. through a hinged door
• Sizes from 24 to 48 in. (61.0 to • 14.5 and 18 in. (36.8 and 45.7 cm)
121.9 cm) wide housings
• 20 to 50 hp (14.9 to 37.3 kw) belt • 20 to 150 hp (14.9 to 111.9 kw) direct
drives drives
• Typical applications: spices, roots, corn • Typical applications: plastics, chemicals,
(cutting/cracking), grains, other food wood products, fertilizers, fibrous products,
products and potpourri grain/corn, spices ©2016 Munson Machinery Co., Inc. MUNSON® is a registered trademark of Munson Machinery Co., Inc.
CX HEAVY DUTY • Single-rotor, high-torque cutter/hog BULK MATERIAL • Twin-shaft, ultra-heavy duty shredder
CUTTERS with gravity feed or pneumatic ram SHREDDERS with heat treated, resharpenable
for primary size reduction of larger, shredder heads reduces volume of
bulky materials diverse materials
• Solid rotor mass with replaceable tips • Low speed, high torque shredding with
in a variety of configurations positive feeding and self-clearing action
• Widths from 12 to 48 in. (30.5 to • 6- to 12-in. (15.2- to 30.5-cm)
121.9 cm) diameter shredder heads, 28 to 60 in.
• Gear reduced or belt drives to 75 hp (71.1 to 152.4 cm) chamber lengths
(55.9 kw) • Gear-reduced single 20 hp (14.9 kw) to
• Typical applications: EPDM/synthetic 100 hp (74.6 kw) dual drives
rubber, wood, chemicals, plastics, • Typical applications: pallets, fiber
detergent blocks, scrap products, drums, computer parts, plastics, rubber
fertilizer, resins, chocolate blocks compounds, cardboard, regrind EE-0591B
MUNSON MACHINERY CO., INC.
FOR OBJECTIVE ADVICE, ASK THE ONLY 1-800-944-6644
1-315-797-0090
MANUFACTURER OF ALL EIGHT TYPES INFO@MUNSONMACHINERY.COM
WWW.MUNSONMACHINERY.COM
