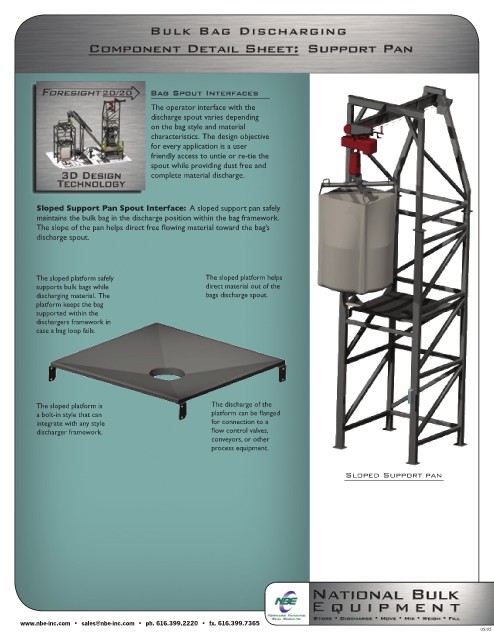

Bag Spout Interfaces
The operator interface with the
discharge spout varies depending
on the bag style and material
characteristics. The design objective
for every application is a user
friendly access to untie or re-tie the
spout while providing dust free and
complete material discharge.

Sloped Support Pan Spout Interface: A sloped support pan safely
maintains the bulk bag in the discharge position within the bag framework.
The slope of the pan helps direct free flowing material toward the bag’s
discharge spout.

The sloped platform safely The sloped platform helps
supports bulk bags while direct material out of the
discharging material. The bags discharge spout.
platform keeps the bag
supported within the
dischargers framework in
case a bag loop fails.

The sloped platform is The discharge of the
a bolt-in style that can platform can be flanged
integrate with any style for connection to a
discharger framework. flow control valves,
conveyors, or other
process equipment.

Sloped Support pan
