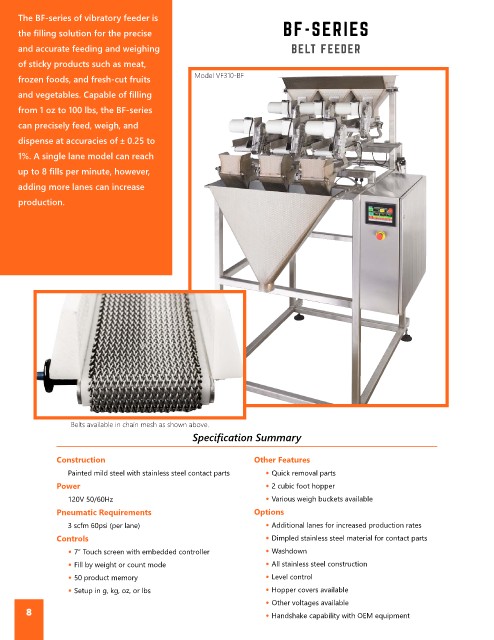

The BF-series of vibratory feeder is

the filling solution for the precise BF-SERIES
and accurate feeding and weighing BELT FEEDER
of sticky products such as meat,
Model VF310-BF
frozen foods, and fresh-cut fruits
and vegetables. Capable of filling
from 1 oz to 100 lbs, the BF-series

can precisely feed, weigh, and
dispense at accuracies of ± 0.25 to

1%. A single lane model can reach
up to 8 fills per minute, however,
adding more lanes can increase

production.

Belts available in chain mesh as shown above.
Specification Summary

Construction Other Features
Painted mild steel with stainless steel contact parts • Quick removal parts
Power • 2 cubic foot hopper
120V 50/60Hz • Various weigh buckets available
Pneumatic Requirements Options
3 scfm 60psi (per lane) • Additional lanes for increased production rates
Controls • Dimpled stainless steel material for contact parts
• 7” Touch screen with embedded controller • Washdown
• Fill by weight or count mode • All stainless steel construction
• 50 product memory • Level control
• Setup in g, kg, oz, or lbs • Hopper covers available
• Other voltages available
8 • Handshake capability with OEM equipment
