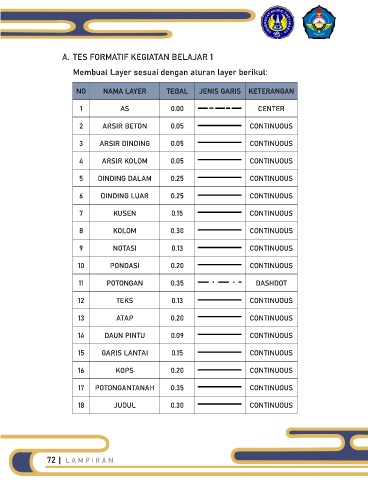

A. TES FORMATIF KEGIATAN BELAJAR 1

Membuat Layer sesuai dengan aturan layer berikut:

NO NAMA LAYER TEBAL JENIS GARIS KETERANGAN

1 AS 0.00 CENTER

2 ARSIR BETON 0.05 CONTINUOUS

3 ARSIR DINDING 0.05 CONTINUOUS

4 ARSIR KOLOM 0.05 CONTINUOUS

5 DINDING DALAM 0.25 CONTINUOUS

6 DINDING LUAR 0.25 CONTINUOUS

7 KUSEN 0.15 CONTINUOUS

8 KOLOM 0.30 CONTINUOUS

9 NOTASI 0.13 CONTINUOUS

10 PONDASI 0.20 CONTINUOUS

11 POTONGAN 0.35 DASHDOT

12 TEKS 0.13 CONTINUOUS

13 ATAP 0.20 CONTINUOUS

14 DAUN PINTU 0.09 CONTINUOUS

15 GARIS LANTAI 0.15 CONTINUOUS

16 KOPS 0.20 CONTINUOUS

17 POTONGANTANAH 0.35 CONTINUOUS

18 JUDUL 0.30 CONTINUOUS
