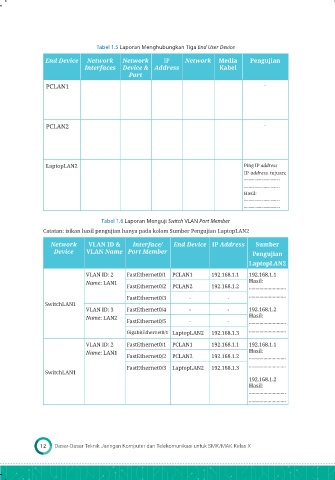

Tabel 1.5 Laporan Menghubungkan Tiga End User Device

End Device Network Network IP Network Media Pengujian
Interfaces Device & Address Kabel
Port
PCLAN1 -

PCLAN2 -

LaptopLAN2 Ping IP address
IP address tujuan:
...............................
...............................
Hasil:
...............................
...............................

Tabel 1.6 Laporan Menguji Switch VLAN Port Member
Catatan: isikan hasil pengujian hanya pada kolom Sumber Pengujian LaptopLAN2
Network VLAN ID & Interface/ End Device IP Address Sumber
Device VLAN Name Port Member
Pengujian
LaptopLAN2
VLAN ID: 2 FastEthernet0/1 PCLAN1 192.168.1.1 192.168.1.1
Name: LAN1 Hasil:
FastEthernet0/2 PCLAN2 192.168.1.2 ............................
............................
FastEthernet0/3 - -
SwitchLAN1
VLAN ID: 3 FastEthernet0/4 - - 192.168.1.2
Name: LAN2 Hasil:
FastEthernet0/5 - - ............................
............................
GigabitEthernet0/1 LaptopLAN2 192.168.1.3
VLAN ID: 2 FastEthernet0/1 PCLAN1 192.168.1.1 192.168.1.1
Name: LAN1 Hasil:
FastEthernet0/2 PCLAN2 192.168.1.2 ............................
............................
FastEthernet0/3 LaptopLAN2 192.168.1.3
SwitchLAN1
192.168.1.2
Hasil:
............................
............................
