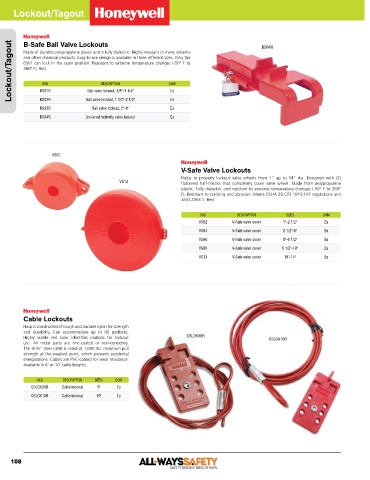

Page 220 - All-Ways Safety Catalog

Lockout/Tagout

Lockout/Tagout B-Safe Ball Valve Lockouts UOM BS04R
Made of durable polypropylene plastic and is fully dielectric . Highly resistant to many solvents
and other chemical products . Easy-to-use design is available in three different sizes . Only the
BS01 can lock in the open position . Resistant to extreme temperature changes (-50° F to
360° F) . Red .

SKU
DESCRIPTION
BS01R
Ball valve lockout, 3/8"-1 1/4"
Ea
BS02R
BS03R Ball valve lockout, 1 1/2"-2 1/2" Ea
Ball valve lockout, 2"-8"
Ea
BS04R Universal butterfly valve lockout Ea

VS02

V-Safe Valve Lockouts
Helps to properly lockout valve wheels from 1” up to 14” dia . Designed with (2)
VS13 flattened half-moons that completely cover valve wheel . Made from polypropylene
plastic . Fully dielectric and resistant to extreme temperature changes (-50° F to 360°
F) . Resistant to cracking and abrasion . Meets OSHA 29 CRF 1910 .147 regulations and
ANSI Z353 .1 . Red .

SKU DESCRIPTION SIZES UOM
VS02 V-Safe valve cover 1"-2 1/2" Ea
VS04 V-Safe valve cover 2 1/2"-5" Ea
VS06 V-Safe valve cover 5"-6 1/2" Ea
VS09 V-Safe valve cover 6 1/2"-10" Ea
VS13 V-Safe valve cover 10"-14" Ea

Cable Lockouts
Hasp is constructed of tough and durable nylon for strength
and durability . Can accommodate up to (6) padlocks .
Highly visible red color identifies padlock for lockout CBLOK06R CBLOK10R
use . All metal parts are zinc-coated or non-corroding .
The 3/16” steel cable is rated at 1,000 lbs . minimum pull
strength at the weakest point, which prevents accidental
energizations . Cables are PVC-coated for wear resistance .
Available in 6’ or 10’ cable lengths .

SKU DESCRIPTION SIZES UOM
CBLOK06R Cable lockout 6' Ea
CBLOK10R Cable lockout 10' Ea

108
