MAGNION FURNITURE INDUSTRIES

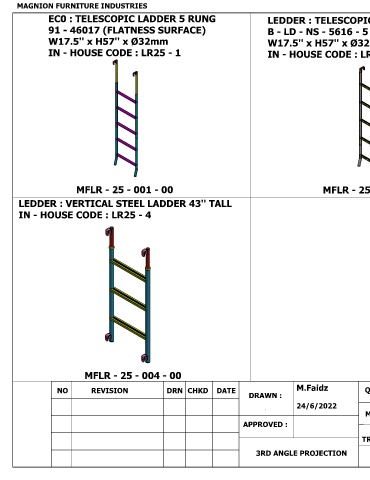

EC0 : TELESCOPIC LADDER 5 RUNG LEDDER : TELESCOPIC LADDER 5 RUNG LOCAL : LADDER 2 RUNG
91 - 46017 (FLATNESS SURFACE) B - LD - NS - 5616 - 5 (HUMP SURFACE) W275mm x H830mm x 19
W17.5'' x H57'' x 32mm W17.5'' x H57'' x 32mm IN - HOUSE CODE : LR25 - 3
IN - HOUSE CODE : LR25 - 1 IN - HOUSE CODE : LR25 - 2
MFLR - 25 - 001 - 00 MFLR - 25 - 002 - 00 MFLR - 25 - 003 - 00
LEDDER : VERTICAL STEEL LADDER 43'' TALL
IN - HOUSE CODE : LR25 - 4
MFLR - 25 - 004 - 00
NO REVISION DRN CHKD DATE M.Faidz QUANTITY :
DRAWN : DRAWING MFLR - 25 - 000 - 00
NO
24/6/2022
MATERIAL :
PART LADDER
APPROVED :
SURFACE NAME
TREATMENT :
3RD ANGLE PROJECTION MODEL
SCALE :
