MAGNION FURNITURE INDUSTRIES

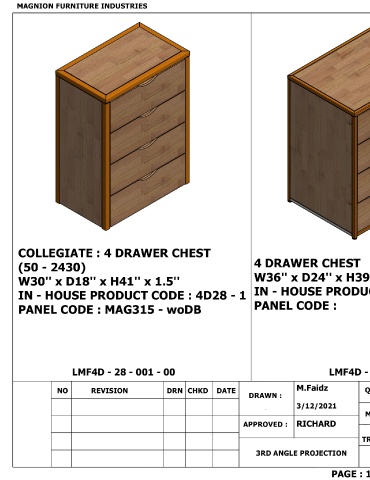

COLLEGIATE : 4 DRAWER CHEST
(50 - 2430) 4 DRAWER CHEST 4 DRAWER CHEST (54 - 2430)
W30'' x D18'' x H41'' x 1.5'' W36'' x D24'' x H39'' x 1'' W30'' x D18'' x H40
IN - HOUSE PRODUCT CODE : 4D28 - 1 IN - HOUSE PRODUCT CODE : 4D28 - 2 IN - PRODUCT PRODUCT CODE : 4D28 - 3
PANEL CODE : MAG315 - woDB PANEL CODE : PANEL CODE : MAG080 - 3
LMF4D - 28 - 001 - 00 LMF4D - 28 - 002 - 00 LMF4D - 28 - 003 - 00
NO REVISION DRN CHKD DATE M.Faidz QUANTITY :
DRAWN : DRAWING LMF4D - 28 - 000 - 00
NO
3/12/2021
MATERIAL : MILD STEEL
PART 4 DRAWER
APPROVED : RICHARD
SURFACE POWDER COATED NAME
TREATMENT :
3RD ANGLE PROJECTION MODEL
SCALE : NOT TO BE SCALE
PAGE : 1/2
