MAGNION FURNITURE INDUSTRIES

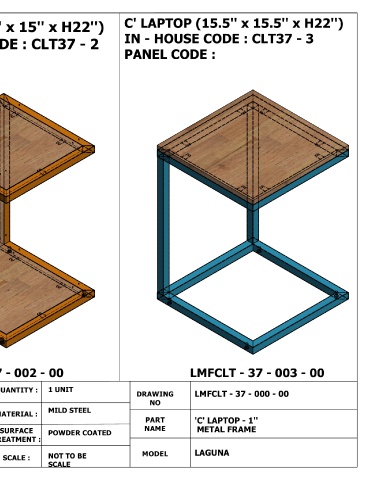

C' LAPTOP (W20'' x D18'' x H26.5'') C' LAPTOP (14'' x 15'' x H22'') C' LAPTOP (15.5'' x 15.5'' x H22'')
54 - 61426 IN - HOUSE CODE : CLT37 - 2 IN - HOUSE CODE : CLT37 - 3
IN - HOUSE CODE : CLT37 - 1 PANEL CODE :
PANEL CODE : MAG030-1 PANEL CODE :
LMFCLT - 37 - 001 - 00 LMFCLT - 37 - 002 - 00 LMFCLT - 37 - 003 - 00
NO REVISION DRN CHKD DATE M.Faidz QUANTITY : 1 UNIT
DRAWN : DRAWING LMFCLT - 37 - 000 - 00
NO
29/11/2019
MATERIAL : MILD STEEL
PART 'C' LAPTOP - 1''
APPROVED : RICHARD
SURFACE POWDER COATED NAME METAL FRAME
TREATMENT :
3RD ANGLE PROJECTION MODEL LAGUNA
SCALE : NOT TO BE
SCALE
