MAGNION FURNITURE INDUSTRIES

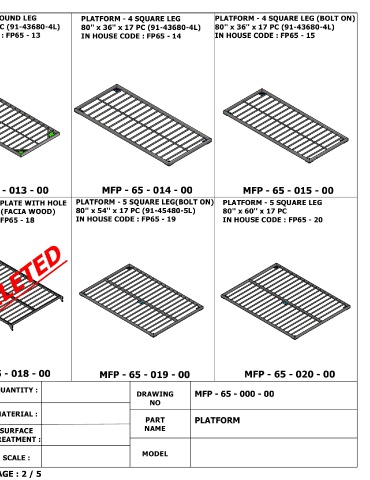

CAPTAIN : BED PLATFORM HOOK PLATE PLATFORM HOOK PLATE WITH HOLE PLATFORM - 4 ROUND LEG PLATFORM - 4 SQUARE LEG PLATFORM - 4 SQUARE LEG (BOLT ON)
(54 - 43680 - CB) 85'' x 36'' x 18 PC (FACIA WOOD) 80'' x 36'' x 17 PC (91-43680-4L) 80'' x 36'' x 17 PC (91-43680-4L) 80'' x 36'' x 17 PC (91-43680-4L)
CENTER PITCH 917mm 82.5'' x 36'' x 18 PC IN HOUSE CODE : FP65 - 13 IN HOUSE CODE : FP65 - 14 IN HOUSE CODE : FP65 - 15
IN HOUSE CODE : FP65 - 11 IN HOUSE CODE : FP65 - 12
OBSELETED
MFP - 65 - 011 - 00 MFP - 65 - 012 - 00 MFP - 65 - 013 - 00 MFP - 65 - 014 - 00 MFP - 65 - 015 - 00
PLATFORM - 5 SQUARE LEG PLATFORM - 5 ROUND LEG PLATFORM HOOK PLATE WITH HOLE PLATFORM - 5 SQUARE LEG(BOLT ON) PLATFORM - 5 SQUARE LEG
80'' x 54'' x 17 PC (91-45480-5L) 80'' x 54'' x 17 PC (91-45480-5L) 75'' x 54'' x 16 PC (FACIA WOOD) 80'' x 54'' x 17 PC (91-45480-5L) 80'' x 60'' x 17 PC
IN HOUSE CODE : FP65 - 16 IN HOUSE CODE : FP65 - 17 IN HOUSE CODE : FP65 - 18 IN HOUSE CODE : FP65 - 19 IN HOUSE CODE : FP65 - 20
OBSELETED
MFP - 65 - 016 - 00 MFP - 65 - 017 - 00 MFP - 65 - 018 - 00 MFP - 65 - 019 - 00 MFP - 65 - 020 - 00
NO REVISION DRN CHKD DATE M.Faidz QUANTITY :
DRAWN : DRAWING MFP - 65 - 000 - 00
NO
7/6/2022
MATERIAL :
PART PLATFORM
APPROVED :
SURFACE NAME
TREATMENT :
3RD ANGLE PROJECTION MODEL
SCALE :
PAGE : 2 / 5
