Page 271 - E-Book Product Assembly For C02 Robot
P. 271
MAGNION FURNITURE INDUSTRIES
508.00
38.10 38.10
38.10 508.00
38.10
457.20
135
NO REVISION DRN CHKD DATE M.Faidz QUANTITY : 1 SET
DRAWN : DRAWING AJET14 - 387 - 001 - 00
NO
26/5/2022
MATERIAL : SS400

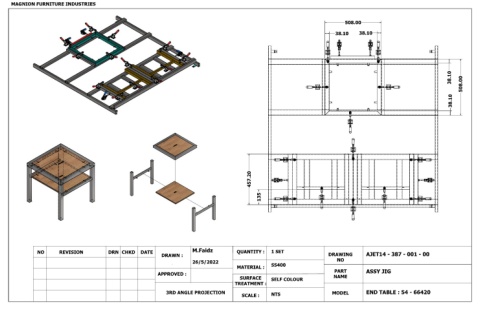

PART ASSY JIG
APPROVED :
SURFACE SELF COLOUR NAME
TREATMENT :
3RD ANGLE PROJECTION MODEL END TABLE : 54 - 66420
SCALE : NTS
