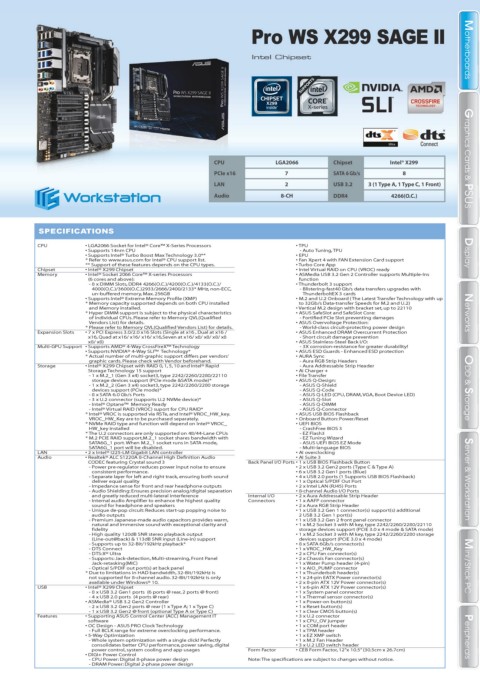

Pro WS X299 SAGE II

Intel Chipset Motherboards Motherboards

CPU LGA2066 Chipset Intel® X299 Graphics Cards & PSUS
PCIe x16 7 SATA 6 Gb/s 8
LAN 2 USB 3.2 3 (1 Type A, 1 Type C, 1 Front)
Audio 8-CH DDR4 4266(O.C.)
Graphics Cards & PSUS

SPECIFICATIONS

CPU • LGA2066 Socket for Intel® Core™ X-Series Processors • TPU
• Supports 14nm CPU - Auto Tuning, TPU

• Supports Intel® Turbo Boost Max Technology 3.0** • EPU Display Display
* Refer to www.asus.com for Intel® CPU support list. • Fan Xpert 4 with FAN Extension Card support

** Support of these features depends on the CPU types. • Turbo Core App
Chipset • Intel® X299 Chipset • Intel Virtual RAID on CPU (VROC) ready

Memory • Intel® Socket 2066 Core™ X-series Processors • ASMedia USB 3.2 Gen 2 Controller supports Multiple-Ins

(6 cores and above): function

- 8 x DIMM Slots, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/ • Thunderbolt 3 support
4000(O.C.)/3600(O.C.)2933/2666/2400/2133* MHz, non-ECC, - Blistering-fast40 Gb/s data transfers upgrades with

un-buffered memory, Max. 256GB ThunderboltEX 3 cards

• Supports Intel® Extreme Memory Profile (XMP) • M.2 and U.2 Onboard (The Latest Transfer Technology with up

* Memory capacity supported depends on both CPU installed to 32Gb/s Data-transfer Speeds for M.2 and U.2)

and Memory installed. • Vertical M.2 design with bracket set, up to 22110

* Hyper DIMM support is subject to the physical characteristics • ASUS SafeSlot and SafeSlot Core: Networks

of individual CPUs. Please refer to Memory QVL(Qualified - Fortified PCIe Slot preventing damages

Vendors List) for details. • ASUS Overvoltage Protection:

* Please refer to Memory QVL(Qualified Vendors List) for details. - World-class circuit-protecting power design

Expansion Slots • 7 x PCI Express 3.0/2.0 x16 Slots (Single at x16 , Dual at x16 / • ASUS Enhanced DRAM Overcurrent Protection

Networks

x16, Quad at x16/ x16/ x16/ x16,Seven at x16/ x8/ x8/ x8/ x8 - Short circuit damage prevention

x8/ x8) • ASUS Stainless-Steel Back I/O:
Multi-GPU Support • Supports AMD® 4-Way CrossFireX™ Technology - 3X corrosion-resistance for greater durability!

• Supports NVIDIA® 4-Way SLI™ Technology* • ASUS ESD Guards - Enhanced ESD protection

* Actual number of multi-graphic support differs per vendors’ • AURA Sync

graphic cards. Please check with Vendor beforehand. - Aura RGB Strip Headers

Storage • Intel® X299 Chipset with RAID 0, 1, 5, 10 and Intel® Rapid - Aura Addressable Strip Header

Storage Technology 15 support • Ai Charger +

- 1 x M.2_1 (Gen 3 x4) socket3, type 2242/2260/2280/22110 • File Transfer

storage devices support (PCIe mode &SATA mode)* • ASUS Q-Design:

- 1 x M.2_2 (Gen 3 x4) socket3, type 2242/2260/2280 storage - ASUS Q-Shield

devices support (PCIe mode)* - ASUS Q-Code ODD & Storage ODD & Storage

- 8 x SATA 6.0 Gb/s Ports - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- 3 x U.2 connector (supports U.2 NVMe device)* - ASUS Q-Slot
- Intel® Optane™ Memory Ready - ASUS Q-DIMM

- Intel® Virtual RAID (VROC) suport for CPU RAID* - ASUS Q-Connector

* Intel® VROC is supported via RSTe, and Intel® VROC_HW_key. • ASUS USB BIOS Flashback

VROC_HW_Key are to be purchased separately. • Onboard Button: Power/Reset

* NVMe RAID type and function will depend on Intel® VROC_ • UEFI BIOS

HW_key installed - CrashFree BIOS 3

* The U.2 connectors are only supported on 48/44-Lane CPUs - EZ Flash3

* M.2 PCIE RAID support,M.2_1 socket shares bandwidth with - EZ Tuning Wizard

SATA6G_1 port. When M.2_1 socket runs in SATA mode, - ASUS UEFI BIOS EZ Mode

SATA6G_1 port will be disabled. - Multi-language BIOS

LAN • 2 x Intel® I225-LM Gigabit LAN controller • AI overclocking

Audio • Realtek® ALC S1220A 8-Channel High Definition Audio • AI Suite 3
CODEC featuring Crystal sound 3 Back Panel I/O Ports • 1 x USB BIOS Flashback Button

- Power pre-regulator reduces power input noise to ensure • 2 x USB 3.2 Gen2 ports (Type C & Type A)
consistent performance. • 6 x USB 3.2 Gen1 ports (Blue)
- Separate layer for left and right track, ensuring both sound • 4 x USB 2.0 ports (1 Supports USB BIOS Flashback)

deliver equal quality • 1 x Optical S/PDIF Out Port Server & Workstation Server & Workstation

- Impedance sense for front and rear headphone outputs • 2 x Intel LAN (RJ45) Ports

- Audio Shielding: Ensures precision analog/digital separation • 8-channel Audio I/O Ports

and greatly reduced multi-lateral interference Internal I/O • 2 x Aura Addressable Strip Header
- Internal audio Amplifier to enhance the highest quality Connectors • 1 x AAFP connector

sound for headphone and speakers • 2 x Aura RGB Strip Header
- Unique de-pop circuit: Reduces start-up popping noise to • 1 x USB 3.2 Gen 1 connector(s) support(s) additional

audio outputs 2 USB 3.2 Gen 1 port(s)

- Premium Japanese-made audio capacitors provides warm, • 1 x USB 3.2 Gen 2 front panel connector

natural and immersive sound with exceptional clarity and • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110

fidelity storage devices support (PCIE 3.0 x 4 mode & SATA mode)

- High quality 120dB SNR stereo playback output • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage

(Line-out@back) & 113dB SNR input (Line-in) support devices support (PCIE 3.0 x 4 mode)

- Supports up to 32-Bit/192kHz playback* • 8 x SATA 6Gb/s connector(s)

- DTS Connect • 1 x VROC_HW_Key
- DTS:X® Ultra • 2 x CPU Fan connector(s)

- Supports: Jack-detection, Multi-streaming, Front Panel • 2 x Chassis Fan connector(s)

Jack-retasking(MIC) • 1 x Water Pump header (4-pin)

- Optical S/PDIF out port(s) at back panel • 1 x AIO_PUMP connector Mini / Stick PC Mini / Stick PC

* Due to limitations in HAD bandwidth, 32-Bit/192kHz is • 1 x Thunderbolt header(s)

not supported for 8-channel audio. 32-Bit/192kHz is only • 1 x 24-pin EATX Power connector(s)

available under Windows® 10. • 2 x 8-pin ATX 12V Power connector(s)

USB • Intel® X299 Chipset • 1 x 6-pin ATX 12V Power connector(s)

- 8 x USB 3.2 Gen1 ports (6 ports @ rear, 2 ports @ front) • 1 x System panel connector

- 4 x USB 2.0 ports (4 ports @ rear) • 1 x Thermal sensor connector(s)

• ASMedia® USB 3.2 Gen2 Controller • 1 x Power-on button(s)

- 2 x USB 3.2 Gen2 ports @ rear (1 x Type A; 1 x Type C) • 1 x Reset button(s)

- 1 x USB 3.2 Gen2 @ front (optional Type A or Type C)

Features • Supporting ASUS Control Center (ACC) Management IT • 3 x U.2 connector

software • 1 x CPU_OV jumper

• OC Design - ASUS PRO Clock Technology • 1 x COM port header

- Full BCLK range for extreme overclocking performance. • 1 x TPM header

• 5-Way Optimization • 1 x EZ XMP switch Peripherals

- Whole system optimization with a single click! Perfectly • 1 x M.2 Fan Header

consolidates better CPU performance, power saving, digital • 3 x U.2 LED switch header
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Form Factor
power control, system cooling and app usages
• CEB Form Factor, 12”x 10.5” (30.5cm x 26.7cm)
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
• DIGI+ Power Control

- CPU Power: Digital 8-phase power design Note: The specifications are subject to changes without notice.

• 1 x Clear CMOS button(s) Peripherals
- DRAM Power: Digital 2-phase power design ASUSWORLD 153
