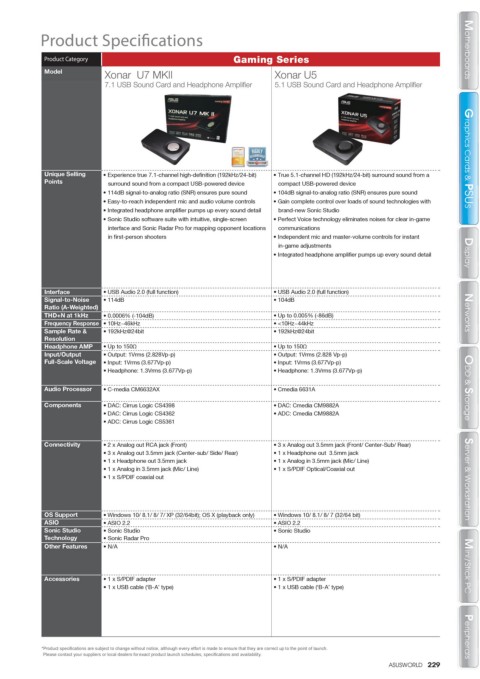

Product Speci cations

Product Category Gaming Series Motherboards Motherboards
Xonar U7 MKII Xonar U5
Model
7.1 USB Sound Card and Headphone Amplifier 5.1 USB Sound Card and Headphone Amplifier

Unique Selling • Experience true 7.1-channel high-definition (192kHz/24-bit) • True 5.1-channel HD (192kHz/24-bit) surround sound from a Graphics Cards & PSUS
Points surround sound from a compact USB-powered device compact USB-powered device
• 114dB signal-to-analog ratio (SNR) ensures pure sound • 104dB signal-to-analog ratio (SNR) ensures pure sound
• Easy-to-reach independent mic and audio volume controls • Gain complete control over loads of sound technologies with
• Integrated headphone amplifier pumps up every sound detail brand-new Sonic Studio
Graphics Cards & PSUS
• Sonic Studio software suite with intuitive, single-screen • Perfect Voice technology eliminates noises for clear in-game
interface and Sonic Radar Pro for mapping opponent locations communications
in first-person shooters • Independent mic and master-volume controls for instant
in-game adjustments
• Integrated headphone amplifier pumps up every sound detail Display

Display

Interface • USB Audio 2.0 (full function) • USB Audio 2.0 (full function)
Signal-to-Noise • 114dB • 104dB
Ratio (A-Weighted)
THD+N at 1kHz • 0.0006% (-104dB) • Up to 0.005% (-86dB) Networks Networks
Frequency Response • 10Hz~46kHz • <10Hz~44kHz
Sample Rate & • 192kHz@24bit • 192kHz@24bit
Resolution
Headphone AMP • Up to 150 • Up to 150
Input/Output • Output: 1Vrms (2.828Vp-p) • Output: 1Vrms (2.828 Vp-p)
Full-Scale Voltage • Input: 1Vrms (3.677Vp-p) • Input: 1Vrms (3.677Vp-p)
• Headphone: 1.3Vrms (3.677Vp-p) • Headphone: 1.3Vrms (3.677Vp-p)

Audio Processor • C-media CM6632AX • Cmedia 6631A ODD & Storage ODD & Storage
Components • DAC: Cirrus Logic CS4398 • DAC: Cmedia CM9882A
• DAC: Cirrus Logic CS4362 • ADC: Cmedia CM9882A
• ADC: Cirrus Logic CS5361

Connectivity • 2 x Analog out RCA jack (Front) • 3 x Analog out 3.5mm jack (Front/ Center-Sub/ Rear)
• 3 x Analog out 3.5mm jack (Center-sub/ Side/ Rear) • 1 x Headphone out 3.5mm jack
• 1 x Headphone out 3.5mm jack • 1 x Analog in 3.5mm jack (Mic/ Line)
• 1 x Analog in 3.5mm jack (Mic/ Line) • 1 x S/PDIF Optical/Coaxial out
• 1 x S/PDIF coaxial out Server & Workstation Server & Workstation

OS Support • Windows 10/ 8.1/ 8/ 7/ XP (32/64bit); OS X (playback only) • Windows 10/ 8.1/ 8/ 7 (32/64 bit)
ASIO • ASIO 2.2 • ASIO 2.2
Sonic Studio • Sonic Studio • Sonic Studio
Technology • Sonic Radar Pro
Other Features • N/A • N/A

Accessories • 1 x S/PDIF adapter • 1 x S/PDIF adapter Mini / Stick PC Mini / Stick PC
• 1 x USB cable (‘B-A’ type) • 1 x USB cable (‘B-A’ type)

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch. Peripherals Peripherals
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
