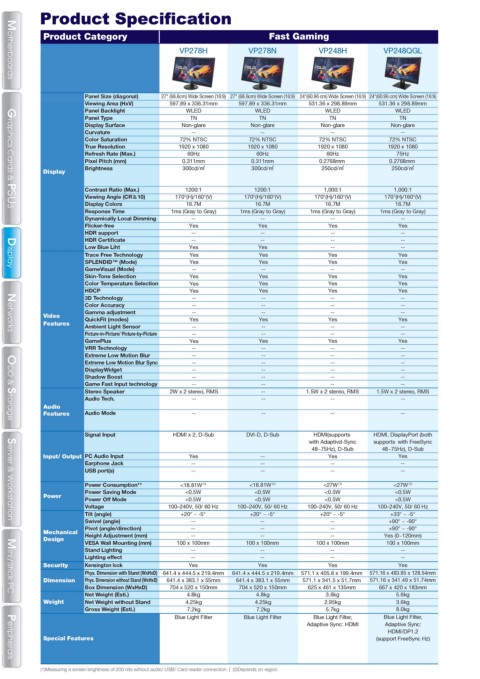

Page 276 - ASUS_WORLD_134_ebook

Product Category Fast Gaming
VP278H VP278N VP248H VP248QGL

Motherboards
Motherboards
Panel Size (diagonal) 27" (68.6cm) Wide Screen (16:9) 27" (68.6cm) Wide Screen (16:9) 24"(60.96 cm) Wide Screen (16:9) 24"(60.96 cm) Wide Screen (16:9)
Viewing Area (HxV) 597.89 x 336.31mm 597.89 x 336.31mm 531.36 x 298.89mm 531.36 x 298.89mm
Panel Backlight WLED WLED WLED WLED
Panel Type TN TN TN TN
Display Surface Non-glare Non-glare Non-glare Non-glare
Curvature -- -- -- --
Color Saturation 72% NTSC 72% NTSC 72% NTSC 72% NTSC
True Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Refresh Rate (Max.) 60Hz 60Hz 60Hz 75Hz
Pixel Pitch (mm) 0.311mm 0.311mm 0.2768mm 0.2768mm
Brightness 300cd/㎡ 300cd/㎡ 250cd/㎡ 250cd/㎡
Display
Contrast Ratio (Max.) 1200:1 1200:1 1,000:1 1,000:1
Viewing Angle (CR≧10) 170°(H)/160°(V) 170°(H)/160°(V) 170°(H)/160°(V) 170°(H)/160°(V)
Display Colors 16.7M 16.7M 16.7M 16.7M
Graphics Cards & PSUS
Graphics Cards & PSUS
Response Time 1ms (Gray to Gray) 1ms (Gray to Gray) 1ms (Gray to Gray) 1ms (Gray to Gray)
Dynamically Local Dimming -- -- -- --
Flicker-free Yes Yes Yes Yes
HDR support -- -- -- --
HDR Certificate -- -- -- --
Low Blue Liht Yes Yes -- --
Trace Free Technology Yes Yes Yes Yes
SPLENDID™ (Mode) Yes Yes Yes Yes
GameVisual (Mode) -- -- -- --
Display
Display
Skin-Tone Selection Yes Yes Yes Yes
Color Temperature Selection Yes Yes Yes Yes
HDCP Yes Yes Yes Yes
3D Technology -- -- -- --
Color Accuracy -- -- -- --
Gamma adjustment -- -- -- --
Video QuickFit (modes) Yes Yes Yes Yes
Features Ambient Light Sensor -- -- -- --
Picture-in-Picture/ Picture-by-Picture -- -- -- --
Networks
Networks
GamePlus Yes Yes Yes Yes
VRR Technology -- -- -- --
Extreme Low Motion Blur -- -- -- --
Extreme Low Motion Blur Sync -- -- -- --
DisplayWidget -- -- -- --
Shadow Boost -- -- -- --
Game Fast Input technology -- -- -- --
Stereo Speaker 2W x 2 stereo, RMS -- 1.5W x 2 stereo, RMS 1.5W x 2 stereo, RMS
Audio Tech. -- -- -- --
Audio
Features Audio Mode -- -- -- --
ODD & Storage
ODD & Storage
Signal Input HDMI x 2, D-Sub DVI-D, D-Sub HDMI(supports HDMI, DisplayPort (both
with Adaptivd-Sync supports with FreeSync
48~75Hz), D-Sub 48~75Hz), D-Sub
Input/ Output PC Audio Input Yes -- Yes Yes
Earphone Jack -- -- -- --
USB port(s) -- -- -- --
Power Consumption** <18.81W (1) <18.81W (1) <27W (1) <27W (1)
Power Saving Mode <0.5W <0.5W <0.5W <0.5W
Power
Power Off Mode <0.5W <0.5W <0.5W <0.5W
Voltage 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz
Tilt (angle) +20° ~ -5° +20° ~ -5° +20° ~ -5° +33° ~ -5°
Swivel (angle) -- -- -- +90° ~ -90°
Server & Workstation
Server & Workstation
Pivot (angle/direction) -- -- -- +90° ~ -90°
Mechanical Height Adjustment (mm) -- -- -- Yes (0~120mm)
Design
VESA Wall Mounting (mm) 100 x 100mm 100 x 100mm 100 x 100mm 100 x 100mm
Stand Lighting -- -- -- --
Lighting effect -- -- -- --
Security Kensington lock Yes Yes Yes Yes
Phys. Dimension with Stand (WxHxD) 641.4 x 444.5 x 219.4mm 641.4 x 444.5 x 219.4mm 571.1 x 405.8 x 199.4mm 571.16 x 483.85 x 128.54mm
Dimension Phys. Dimension without Stand (WxHxD) 641.4 x 383.1 x 55mm 641.4 x 383.1 x 55mm 571.1 x 341.5 x 51.7mm 571.16 x 341.49 x 51.74mm
Box Dimension (WxHxD) 704 x 520 x 150mm 704 x 520 x 150mm 625 x 461 x 135mm 667 x 420 x 183mm
Net Weight (Esti.) 4.8kg 4.8kg 3.6kg 5.6kg
Mini / Stick PC
Mini / Stick PC
Weight Net Weight without Stand 4.25kg 4.25kg 2.95kg 3.6kg
Gross Weight (Esti.) 7.2kg 7.2kg 5.7kg 8.0kg
Blue Light Filter Blue Light Filter Blue Light Filter, Blue Light Filter,
Adaptive Sync: HDMI Adaptive Sync:
HDMI/DP1.2
Special Features Peripherals (support FreeSync Hz)
Peripherals
(1)Measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection | (2)Depends on region
