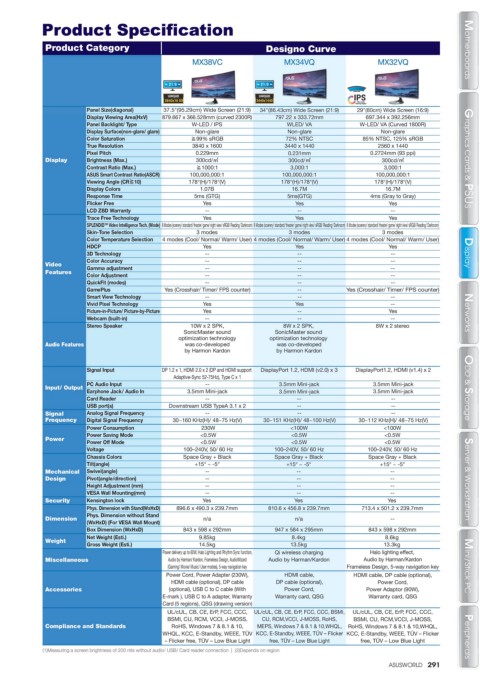

Page 293 - ASUS_WORLD_134_ebook

Product Category Designo Curve Motherboards Motherboards

MX38VC MX34VQ MX32VQ

Panel Size(diagonal) 37.5"(95.29cm) Wide Screen (21:9) 34"(86.43cm) Wide Screen (21:9) 29"(80cm) Wide Screen (16:9)
Display Viewing Area(HxV) 879.667 x 366.528mm (curved 2300R) 797.22 x 333.72mm 697.344 x 392.256mm
Panel Backlight/ Type W-LED / IPS WLED/ VA W-LED/ VA (Curved 1800R)
Display Surface(non-glare/ glare) Non-glare Non-glare Non-glare
Color Saturation ≧99% sRGB 72% NTSC 85% NTSC, 125% sRGB
True Resolution 3840 x 1600 3440 x 1440 2560 x 1440
Pixel Pitch 0.229mm 0.231mm 0.2724mm (93 ppi)
Display Brightness (Max.) 300cd/㎡ 300cd/㎡ Graphics Cards & PSUS 300cd/㎡ Graphics Cards & PSUS
Contrast Ratio (Max.) ≧1000:1 3,000:1 3,000:1
ASUS Smart Contrast Ratio(ASCR) 100,000,000:1 100,000,000:1 100,000,000:1
Viewing Angle (CR≧10) 178°(H)/178°(V) 178°(H)/178°(V) 178°(H)/178°(V)
Display Colors 1.07B 16.7M 16.7M
Response Time 5ms (GTG) 5ms(GTG) 4ms (Gray to Gray)
Flicker Free Yes Yes Yes
LCD ZBD Warranty -- -- --
Trace Free Technology Yes Yes Yes
SPLENDID™ Video Intelligence Tech. (Mode) 8 Modes (scenery/ standard/ theater/ game/ night view/ sRGB/ Reading/ Darkroom) 8 Modes (scenery/ standard/ theater/ game/ night view/ sRGB/ Reading/ Darkroom) 8 Modes (scenery/ standard/ theater/ game/ night view/ sRGB/ Reading/ Darkroom)
Skin-Tone Selection 3 modes 3 modes 3 modes
Color Temperature Selection 4 modes (Cool/ Normal/ Warm/ User) 4 modes (Cool/ Normal/ Warm/ User) 4 modes (Cool/ Normal/ Warm/ User)
HDCP Yes Yes Yes
3D Technology -- -- Display -- Display
Video Color Accuracy -- -- --
--
--
--
Gamma adjustment
Features
Color Adjustment -- -- --
QuickFit (modes) -- -- --
GamePlus Yes (Crosshair/ Timer/ FPS counter) -- Yes (Crosshair/ Timer/ FPS counter)
Smart View Technology -- -- --
Vivid Pixel Technology Yes Yes --
Picture-in-Picture/ Picture-by-Picture Yes -- Networks Yes Networks
Webcam (built-in) -- -- --
Stereo Speaker 10W x 2 SPK, 8W x 2 SPK, 8W x 2 stereo
SonicMaster sound SonicMaster sound
optimization technology optimization technology
Audio Features was co-developed was co-developed
by Harmon Kardon by Harmon Kardon
Signal Input DP 1.2 x 1, HDMI 2.0 x 2 (DP and HDMI support DisplayPort 1.2, HDMI (v2.0) x 3 DisplayPort1.2, HDMI (v1.4) x 2
Adaptive-Sync 52-75Hz), Type C x 1
Input/ Output PC Audio Input -- 3.5mm Mini-jack ODD & Storage 3.5mm Mini-jack ODD & Storage
Earphone Jack / Audio In 3.5mm Mini-jack 3.5mm Mini-jack 3.5mm Mini-jack
Card Reader -- -- --
USB port(s) Downstream USB TypeA 3.1 x 2 -- --
Signal Analog Signal Frequency -- -- --
Frequency Digital Signal Frequency 30~160 KHz(H)/ 48~75 Hz(V) 30~151 KHz(H)/ 48~100 Hz(V) 30~112 KHz(H)/ 48~75 Hz(V)
Power Consumption 230W <100W <100W
Power Saving Mode <0.5W <0.5W <0.5W
Power
Power Off Mode <0.5W <0.5W <0.5W
Voltage 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz
Chassis Colors Space Gray + Black Space Gray + Black Space Gray + Black
Tilt(angle) +15° ~ -5° +15° ~ -5° +15° ~ -5°
Mechanical Swivel(angle) -- -- --
Design Pivot(angle/direction) -- -- Server & Workstation -- Server & Workstation
Height Adjustment (mm) -- -- --
VESA Wall Mounting(mm) -- -- --
Security Kensington lock Yes Yes Yes
Phys. Dimension with Stand(WxHxD) 896.6 x 490.3 x 239.7mm 810.6 x 456.8 x 239.7mm 713.4 x 501.2 x 239.7mm
Dimension Phys. Dimension without Stand n/a n/a --
(WxHxD) (For VESA Wall Mount)
Box Dimension (WxHxD) 843 x 598 x 292mm 947 x 584 x 295mm 843 x 598 x 292mm
Net Weight (Esti.) 9.85kg 8.4kg 8.6kg
Weight
Gross Weight (Esti.) 14.5kg 13.5kg 13.3kg
Power delivery up to 60W, Halo Lighting and Rhythm Sync function, Qi wireless charging Halo lighting effect,
Miscellaneous Audio by Harman/ Kardon, Frameless Design, AudioWizard Audio by Harman/Kardon Audio by Harman/Kardon
(Gaming/ Movie/ Music/ User modes), 5-way navigation key Frameless Design, 5-way navigation key Mini / Stick PC
Power Cord, Power Adapter (230W), HDMI cable, HDMI cable, DP cable (optional),
HDMI cable (optional), DP cable DP cable (optional), Power Cord,
Accessories (optional), USB C to C cable (With Power Cord, Power Adaptor (90W),
E-mark ), USB C to A adapter, Warranty Warranty card, QSG Warranty card, QSG
Mini / Stick PC
Card (5 regions), QSG (drawing version)
UL/cUL, CB, CE, ErP, FCC, CCC, UL/cUL, CB, CE, ErP, FCC, CCC, BSMI, UL/cUL, CB, CE, ErP, FCC, CCC,
BSMI, CU, RCM, VCCI, J-MOSS, CU, RCM,VCCI, J-MOSS, RoHS, BSMI, CU, RCM,VCCI, J-MOSS,
Compliance and Standards RoHS, Windows 7 & 8.1 & 10, MEPS, Windows 7 & 8.1 & 10,WHQL, RoHS, Windows 7 & 8.1 & 10,WHQL,
WHQL, KCC, E-Standby, WEEE, TÜV KCC, E-Standby, WEEE, TÜV – Flicker KCC, E-Standby, WEEE, TÜV – Flicker Peripherals
– Flicker free, TÜV – Low Blue Light free, TÜV – Low Blue Light free, TÜV – Low Blue Light
(1)Measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection | (2)Depends on region
