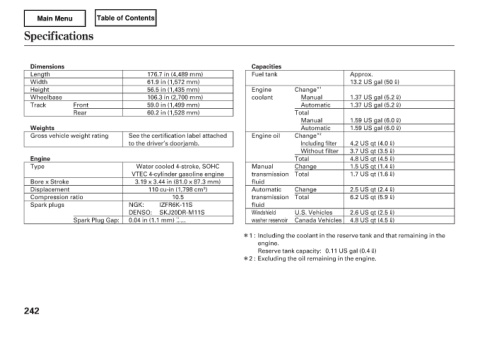

Specifications

Dimensions Capacities
Length 176.7 in (4,489 mm) Fuel tank Approx.
Width 61.9 in (1,572 mm) 13.2 US gal (50 )
Height 56.5 in (1,435 mm) Engine Change ˎ1
Wheelbase 106.3 in (2,700 mm) coolant Manual 1.37 US gal (5.2 )
Track Front 59.0 in (1,499 mm) Automatic 1.37 US gal (5.2 )
Rear 60.2 in (1,528 mm) Total
Manual 1.59 US gal (6.0 )
Weights Automatic 1.59 US gal (6.0 )
Gross vehicle weight rating See the certification label attached Engine oil Change ˎ2
to the driver’s doorjamb. Including filter 4.2 US qt (4.0 )
Without filter 3.7 US qt (3.5 )
Engine Total 4.8 US qt (4.5 )
Type Water cooled 4-stroke, SOHC Manual Change 1.5 US qt (1.4 )
VTEC 4-cylinder gasoline engine transmission Total 1.7 US qt (1.6 )
BorexStroke 3.19 x 3.44 in (81.0 x 87.3 mm) fluid
Displacement 110 cu-in (1,798 cm ) Automatic Change 2.5 US qt (2.4 )
Compression ratio 10.5 transmission Total 6.2 US qt (5.9 )
Spark plugs NGK: IZFR6K-11S fluid
DENSO: SKJ20DR-M11S Windshield U.S. Vehicles 2.6 US qt (2.5 )
Spark Plug Gap: 0.04 in (1.1 mm) ʴ0 ʵ0.1 mm washer reservoir Canada Vehicles 4.8 US qt (4.5 )

ˎ1: Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity: 0.11 US gal (0.4 )
ˎ2: Excluding the oil remaining in the engine.

242
