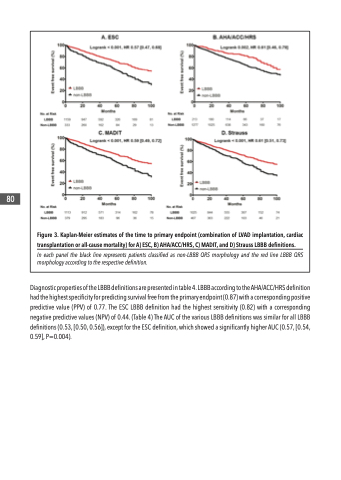

Figure 3. Kaplan-Meier estimates of the time to primary endpoint (combination of LVAD implantation, cardiac
transplantation or all-cause mortality) for A) ESC, B) AHA/ACC/HRS, C) MADIT, and D) Strauss LBBB definitions.
In each panel the black line represents patients classified as non-LBBB QRS morphology and the red line LBBB QRS morphology according to the respective definition.
80
Diagnostic properties of the LBBB definitions are presented in table 4. LBBB according to the AHA/ACC/HRS definition had the highest specificity for predicting survival free from the primary endpoint (0.87) with a corresponding positive predictive value (PPV) of 0.77. The ESC LBBB definition had the highest sensitivity (0.82) with a corresponding negative predictive values (NPV) of 0.44. (Table 4) The AUC of the various LBBB definitions was similar for all LBBB definitions (0.53, [0.50, 0.56]), except for the ESC definition, which showed a significantly higher AUC (0.57, [0.54, 0.59], P=0.004).
