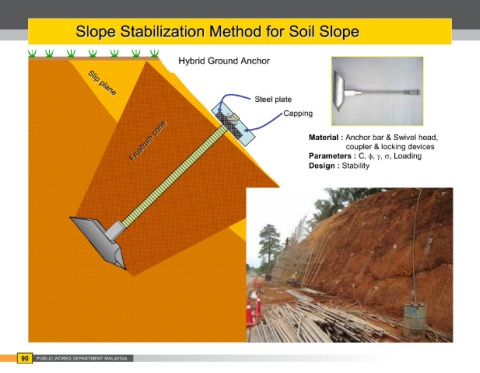

Slope Stabilization Method for Soil Slope Slope Stabilization Method for Soil Slope

Hybrid Ground Anchor Soil Nailing

Steel plate
Capping

Material : Anchor bar & Swivel head,
coupler & locking devices
Parameters : C, , , , Loading
Design : Stability
Material : As shown in the typical drawing
Parameters : c’, ’, ’, Loading on slope
Design : Stability

90 PUBLIC WORKS DEPARTMENT MALAYSIA GEOTECHNICAL ENGINEERING HANDBOOK 91
