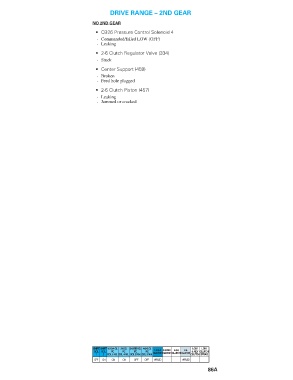

Page 141 - Hydra-matic 6 Speed RWD Technician's Guide (October 2005)

DRIVE RANGE – 2ND GEAR

NO 2ND GEAR
• CB26 Pressure Control Solenoid 4
- Commanded/failed LOW (OFF)
- Leaking
• 2-6 Clutch Regulator Valve (334)
- Stuck

• Center Support (459)
- Broken
- Feed hole plugged
• 2-6 Clutch Piston (457)
- Leaking
- Jammed or cracked

SHIFT SHIFT 1-2-3-4 CL 2-6 CL 3-5 REV CL 4-5-6 CL 1-2-3-4 3-5 REV 4-5-6 2-6 LOW LOW
SOL SOL PC PC PC PC CLUTCH CLUTCH CLUTCH CLUTCH & REV CLUTCH
1 2 SOL 5 N.L. SOL 4 N.L. SOL 2 N.H. SOL 3 N.H. CLUTCH SPRAG
OFF ON ON ON OFF OFF APPLIED APPLIED
86A
