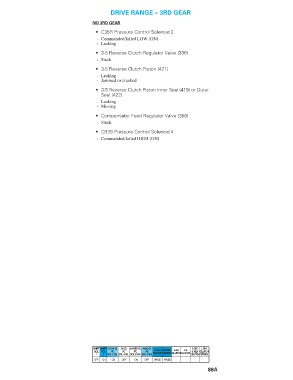

DRIVE RANGE – 3RD GEAR

NO 3RD GEAR
• C35R Pressure Control Solenoid 2
- Commanded/failed LOW (ON)
- Leaking
• 3-5 Reverse Clutch Regulator Valve (336)
- Stuck

• 3-5 Reverse Clutch Piston (421)
- Leaking
- Jammed or cracked

• 3-5 Reverse Clutch Piston Inner Seal (419) or Outer
Seal (422)
- Leaking
- Missing

• Compensator Feed Regulator Valve (356)
- Stuck
• CB26 Pressure Control Solenoid 4
- Commanded/failed HIGH (ON)

SHIFT SHIFT 1-2-3-4 CL 2-6 CL 3-5 REV CL 4-5-6 CL 1-2-3-4 3-5 REV 4-5-6 2-6 LOW LOW
SOL SOL PC PC PC PC CLUTCH CLUTCH CLUTCH CLUTCH & REV CLUTCH
1 2 SOL 5 N.L. SOL 4 N.L. SOL 2 N.H. SOL 3 N.H. CLUTCH SPRAG
OFF ON ON OFF ON OFF APPLIED APPLIED
88A
