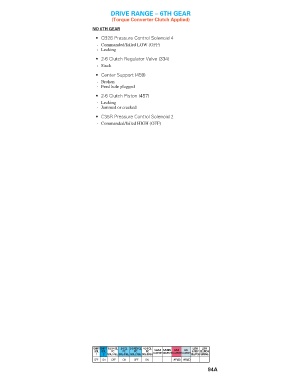

DRIVE RANGE – 6TH GEAR
(Torque Converter Clutch Applied)
NO 6TH GEAR
• CB26 Pressure Control Solenoid 4
- Commanded/failed LOW (OFF)
- Leaking

• 2-6 Clutch Regulator Valve (334)
- Stuck
• Center Support (459)
- Broken
- Feed hole plugged
• 2-6 Clutch Piston (457)
- Leaking
- Jammed or cracked
• C35R Pressure Control Solenoid 2
- Commanded/failed HIGH (OFF)

SHIFT SHIFT 1-2-3-4 CL 2-6 CL 3-5 REV CL 4-5-6 CL LOW LOW
SOL SOL PC PC PC PC 1-2-3-4 3-5 REV 4-5-6 2-6 & REV CLUTCH
1 2 SOL 5 N.L. SOL 4 N.L. SOL 2 N.H. SOL 3 N.H. CLUTCH CLUTCH CLUTCH CLUTCH CLUTCH SPRAG
OFF ON OFF ON OFF ON APPLIED APPLIED
94A
