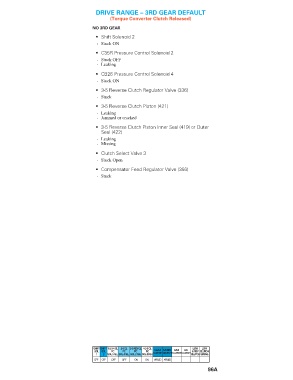

DRIVE RANGE – 3RD GEAR DEFAULT
(Torque Converter Clutch Released)

NO 3RD GEAR
• Shift Solenoid 2
- Stuck ON
• C35R Pressure Control Solenoid 2
- Stuck OFF
- Leaking

• CB26 Pressure Control Solenoid 4
- Stuck ON
• 3-5 Reverse Clutch Regulator Valve (336)
- Stuck
• 3-5 Reverse Clutch Piston (421)
- Leaking
- Jammed or cracked

• 3-5 Reverse Clutch Piston Inner Seal (419) or Outer
Seal (422)
- Leaking
- Missing

• Clutch Select Valve 3
- Stuck Open

• Compensator Feed Regulator Valve (356)
- Stuck

SHIFT SHIFT 1-2-3-4 CL 2-6 CL 3-5 REV CL 4-5-6 CL LOW LOW
SOL SOL PC PC PC PC 1-2-3-4 3-5 REV 4-5-6 2-6 & REV CLUTCH
1 2 SOL 5 N.L. SOL 4 N.L. SOL 2 N.H. SOL 3 N.H. CLUTCH CLUTCH CLUTCH CLUTCH CLUTCH SPRAG
OFF OFF OFF OFF ON ON APPLIED APPLIED
96A
