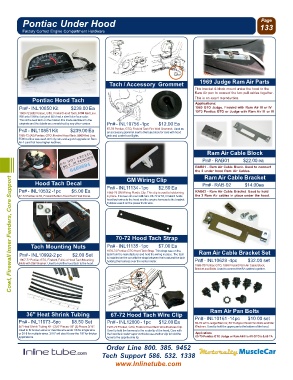

Pontiac Under Hood 133
Factory Correct Engine Compartment Hardware

Tach / Accessory Grommet 1969 Judge Ram Air Parts
This bracket & block mount under the hood to the
Ram Air pan to connect the two pull cables together.
Pontiac Hood Tach This is an exact reproduction.
Applications:
Pn# - INL10850 Kit $239.00 Ea 1969 GTO Judge, Firebird with Ram Air III or IV
1969-72 (All) Pontiac, GTO, Firebird Hood Tach, 5100 Red Line. 1970 Pontiac GTO or Judge with Ram Air III or IV
Will aslo fit 68 but original 68's had a steel blue face color.
This is the best tach on the market. It is made identiacal to the
originals and the details are unmatched by any other version. Pn# - INL10756 -1pc $12.00 Ea
Pn# - INL10851 Kit $239.00 Ea 67-78 Pontiac, GTO, Firebird Tach Fire Wall Grommet. Used as
an accessory grommet next to the fuse block for cars with hood
1969-72 (All) Pontiac, GTO, Firebird Hood Tach, 5500 Red Line. tach and under hood lights.
5500 red line was used on 6 cly cars and a good upgrade on Ram
Air 4 cars that have higher redlines.
Ram Air Cable Block
Pn# - RAB01 $22.00 ea
RAB01 - Ram Air Cable Block. Used to connect
the 2 under hood Ram Air Cables.
Cowl, Firewall Inner Fenders, Core Support
GM Wiring Clip Ram Air Cable Bracket
Hood Tach Decal Pn# - RAB-02 $14.00ea
Pn# - INL11134 -1pc $2.50 Ea
Pn# - INL10532 -1pc $5.00 Ea 1964-79 GM Wiring Plastic Clip. This clip is used to hold wiring RAB02 - Ram Air Cable Bracket. Used to hold
67-72 Pontiac GTO, Firebird Bottom Hood Tach Heat Decal. in place. It is seen all over GM cars. 68-72 GTO, Firebird holds the 2 Ram Air cables in place under the hood.
hood tach wires to the hood and the engine harness to the bracket.
Cutlass uses it on the power trunk wire.

70-72 Hood Tach Strap
Tach Mounting Nuts Pn# - INL11135 -1pc $7.00 Ea
1970-72 Pontiac GTO Hood Tach Strap. This strap was on the
Pn# - INL10992-2 pc $2.00 Set tach from the manufacturer and held the wiring in place. The tach Ram Air Cable Bracket Set
1967-72 Pontiac GTO, Firebird, Fullsize Hood Tach Mounting is installed on the car with the strap between the hood and the tach Pn# - INL10629 -4pc $32.00 set
holding the harness over the center meter.
Nuts with Star Washer. Used to hold the hood tach to the hood.
1969-70 Pontiac GTO, 1969 Firebird Ram Air Cable Block,
Bracket and Bolts. Used to connect the RA cables together.

Ram Air Pan Bolts
36" Heat Shrink Tubing 67-72 Hood Tach Wire Clip
Pn# - INL11073 -6pc $8.50 Set Pn# - INL12000 - 1pc $12.00 Ea Pn# - INL10161 -14pc $10.00 set
69-70 GTO Judge/Ram Air, 69 TA Upper Hood Pan Bolts and Star
36" Heat Shrink Tubing Kit - (3) 6" Pieces 1/8" (3) Pieces 3/16". 1967-72 Pontiac, GTO, Firebird Hood Tach Wire Harness Clip. Washers. Used to hold the upper pan to the bottom of the hood.
Used to fix broken wires or insulate wire ends 1/8 for single wire Used to hold the harness to the under lip of the hood. Cars with
or 3/16 for multiple wires. 3/16" will also fit over the 1/8" for thicker the hood tach water vapor vent tube use another clip to hold the Applications
applications. hose to the oppsite side lip. 69-70 Pontiac GTO Judge or Ram Air III or IV GTO's & 69 TA
