L1 Input Input A B3:1 Ladder logic program Output L2
TON
Input A TIMER ON DELAY EN
0
Timer T4:2
Time base 0.1 DN
Preset 50 PL1
Accumulated 0
T4:2 PL1
DN
T4:2
TON
TIMER ON DELAY EN
DN Timer T4:3
Time base 0.1 DN
Preset 100
Accumulated 0
T4:2 B3:1
DN 0

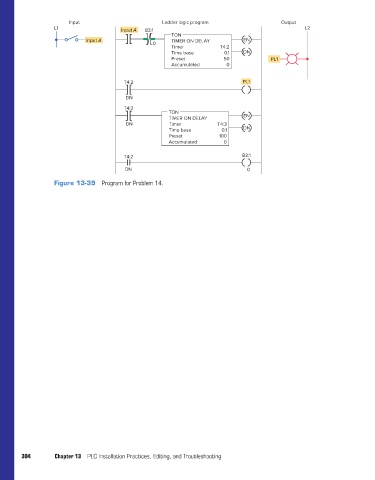

Figure 13-39 Program for Problem 14.
