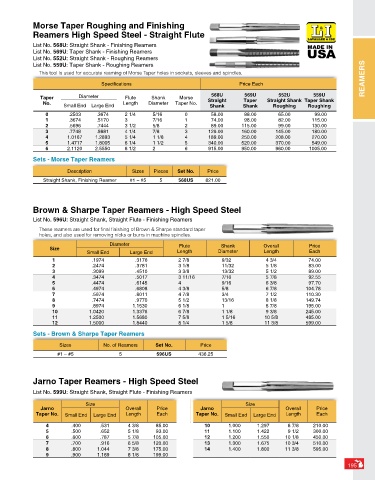

Page 197 - Michigan Drill

Morse Taper Roughing and Finishing
Reamers High Speed Steel - Straight Flute
List No. 568U: Straight Shank - Finishing Reamers
List No. 569U: Taper Shank - Finishing Reamers
List No. 552U: Straight Shank - Roughing Reamers
List No. 559U: Taper Shank - Roughing Reamers
This tool is used for accurate reaming of Morse Taper holes in sockets, sleeves and spindles.
Specifications Price Each REAMERS

Taper Diameter Flute Shank Morse 568U 569U 552U 559U
No. Length Diameter Taper No. Straight Taper Straight Shank Taper Shank
Small End Large End Shank Shank Roughing Roughing
0 .2503 .3674 2 1/4 5/16 0 58.00 88.00 65.00 99.00
1 .3674 .5170 3 7/16 1 74.00 98.00 82.00 115.00
2 .5696 .7444 3 1/2 5/8 2 89.00 115.00 99.00 130.00
3 .7748 .9881 4 1/4 7/8 3 129.00 160.00 145.00 180.00
4 1.0167 1.2893 5 1/4 1 1/8 4 189.00 250.00 208.00 270.00
5 1.4717 1.8005 6 1/4 1 1/2 5 340.00 520.00 370.00 549.00
6 2.1120 2.5550 8 1/2 2 6 915.00 950.00 960.00 1005.00
Sets - Morse Taper Reamers
Description Sizes Pieces Set No. Price
Straight Shank, Finishing Reamer #1 – #5 5 568US 821.00

Brown & Sharpe Taper Reamers - High Speed Steel
List No. 596U: Straight Shank, Straight Flute - Finishing Reamers
These reamers are used for final finishing of Brown & Sharpe standard taper
holes, and also used for removing nicks or burrs in machine spindles.
Diameter Flute Shank Overall Price
Size
Small End Large End Length Diameter Length Each
1 .1974 .3176 2 7/8 9/32 4 3/4 74.00
2 .2474 .3781 3 1/8 11/32 5 1/8 83.00
3 .3099 .4510 3 3/8 13/32 5 1/2 89.00
4 .3474 .5017 3 11/16 7/16 5 7/8 92.55
5 .4474 .6145 4 9/16 6 3/8 97.70
6 .4974 .6808 4 3/8 5/8 6 7/8 104.78
7 .5974 .8011 4 7/8 3/4 7 1/2 110.30
8 .7474 .9770 5 1/2 13/16 8 1/8 149.74
9 .8974 1.1530 6 1/8 1 8 7/8 195.00
10 1.0420 1.3376 6 7/8 1 1/8 9 3/8 245.00
11 1.2500 1.5680 7 5/8 1 5/16 10 5/8 485.00
12 1.5000 1.8440 8 1/4 1 5/8 11 3/8 599.00
Sets - Brown & Sharpe Taper Reamers

Sizes No. of Reamers Set No. Price
#1 – #5 5 596US 436.25

Jarno Taper Reamers - High Speed Steel
List No. 599U: Straight Shank, Straight Flute - Finishing Reamers

Size Size
Jarno Overall Price Jarno Overall Price
Taper No. Small End Large End Length Each Taper No. Small End Large End Length Each
4 .400 .531 4 3/8 85.00 10 1.000 1.297 8 7/8 210.00
5 .500 .652 5 1/8 93.00 11 1.100 1.422 9 1/2 300.00
6 .600 .787 5 7/8 105.00 12 1.200 1.550 10 1/8 450.00
7 .700 .916 6 5/8 120.00 13 1.300 1.675 10 3/4 510.00
8 .800 1.044 7 3/8 175.00 14 1.400 1.800 11 3/8 595.00
9 .900 1.169 8 1/8 199.00
195
