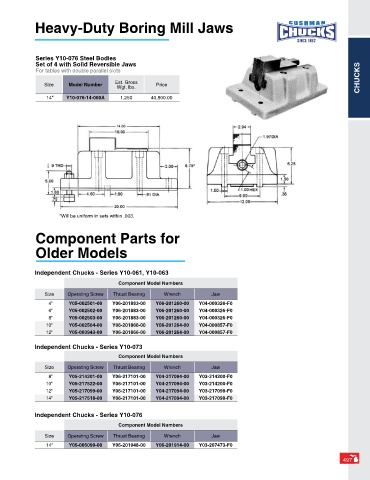

Heavy-Duty Boring Mill Jaws

Series Y10-076 Steel Bodies
Set of 4 with Solid Reversible Jaws
For tables with double parallel slots
Est. Gross CHUCKS
Size Model Number Price
Wgt. lbs.
14" Y10-076-14-000A 1,250 40,800.00

*Will be uniform in sets within .003.

Component Parts for

Older Models

Independent Chucks - Series Y10-061, Y10-063
Component Model Numbers
Size Operating Screw Thrust Bearing Wrench Jaw
4" Y05-002501-00 Y06-201883-00 Y06-201260-00 Y04-000326-F0
6" Y05-002502-00 Y06-201883-00 Y06-201260-00 Y04-000326-F0
8" Y05-002503-00 Y06-201883-00 Y06-201260-00 Y04-000326-F0
10" Y05-002504-00 Y06-201866-00 Y06-201264-00 Y04-000857-F0
12" Y05-003943-00 Y06-201866-00 Y06-201264-00 Y04-000857-F0

Independent Chucks - Series Y10-073
Component Model Numbers
Size Operating Screw Thrust Bearing Wrench Jaw
8" Y05-214201-00 Y06-217101-00 Y04-217094-00 Y03-214200-F0
10" Y05-217522-00 Y06-217101-00 Y04-217094-00 Y03-214200-F0
12" Y05-217099-00 Y06-217101-00 Y04-217094-00 Y03-217098-F0
14" Y05-217518-00 Y06-217101-00 Y04-217094-00 Y03-217098-F0

Independent Chucks - Series Y10-076
Component Model Numbers
Size Operating Screw Thrust Bearing Wrench Jaw
14" Y05-005099-00 Y06-201948-00 Y06-201914-00 Y03-207473-F0

497
