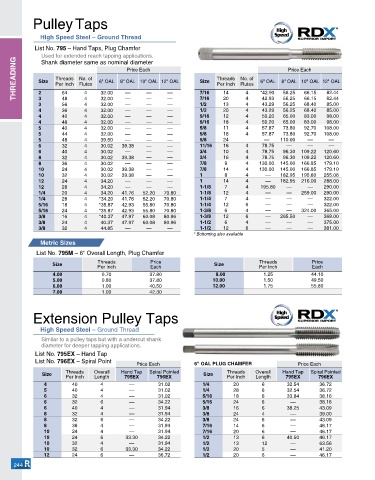

Pulley Taps

High Speed Steel – Ground Thread
List No. 795 – Hand Taps, Plug Chamfer
Used for extended reach tapping applications.
THREADING Size Threads No. of 6" OAL 8" OAL 10" OAL 12" OAL Size Threads Flutes 6" OAL 8" OAL 10" OAL 12" OAL
Shank diameter same as nominal diameter
Price Each
Price Each
No. of
Flutes
Per Inch
Per Inch
7/16
56.25
42.93
20
––
––
48
32.00
82.44
66.15
––
43.29
3 2 3 64 4 4 4 32.00 –– –– –– 7/16 14 4 4 4 *42.93 56.25 66.15 82.44
13
68.40
85.00
1/2
56.25
56
––
––
––
32.00
4 36 4 32.00 –– –– –– 1/2 20 4 43.29 56.25 68.40 85.00
4 40 4 32.00 –– –– –– 9/16 12 4 50.20 65.00 83.00 98.00
4 48 4 32.00 –– –– –– 9/16 18 4 50.20 65.00 83.00 98.00
5 40 4 32.00 –– –– –– 5/8 11 4 57.87 73.80 92.70 108.00
5 44 4 32.00 –– –– –– 5/8 18 4 57.87 73.80 92.70 108.00
5 48 4 39.50 –– –– –– 5/8 24 –– 110.00 –– ––
6 32 4 30.02 39.38 –– –– 11/16 16 4 78.75 –– –– ––
6 40 4 30.02 –– –– –– 3/4 10 4 78.75 96.30 109.22 120.60
8 32 4 30.02 39.38 –– –– 3/4 16 4 78.75 96.30 109.22 120.60
8 36 4 30.02 –– –– –– 7/8 9 4 130.00 145.00 166.85 179.10
10 24 4 30.02 39.38 –– –– 7/8 14 4 130.00 145.00 166.85 179.10
10 32 4 30.02 39.38 –– –– 1 8 4 –– 182.95 195.80 255.06
12 24 4 34.20 –– –– –– 1 14 4 –– 182.95 216.00 288.00
12 28 4 34.20 –– –– –– 1-1/8 7 4 195.80 –– –– 290.00
1/4 20 4 34.20 41.76 52.20 70.80 1-1/8 12 4 –– –– 259.00 290.00
1/4 28 4 *34.20 41.76 52.20 70.80 1-1/4 7 4 –– –– –– 322.00
5/16 18 4 *35.87 42.93 55.80 70.80 1-1/4 12 6 –– –– –– 322.00
5/16 24 4 *35.87 42.93 55.80 70.80 1-3/8 6 4 –– –– 324.00 365.00
3/8 16 4 *40.37 47.97 60.08 80.96 1-3/8 12 6 –– 265.50 –– 368.00
3/8 24 4 40.37 47.97 60.08 80.96 1-1/2 6 4 –– –– –– 375.00
3/8 32 4 44.85 –– –– –– 1-1/2 12 6 –– –– –– 381.00
* bottoming also available
Metric Sizes
List No. 795M – 6" Overall Length, Plug Chamfer
Size Threads Price Size Threads Price
Each
Per Inch
Each
Per Inch
4.00 0.70 37.80 8.00 1.25 44.10
5.00 0.80 37.80 10.00 1.50 49.50
6.00 1.00 40.50 12.00 1.75 55.80
7.00 1.00 42.30
Extension Pulley Taps
High Speed Steel – Ground Thread
Similar to a pulley taps but with a undercut shank
diameter for deeper tapping applications.
List No. 795EX – Hand Tap
List No. 796EX – Spiral Point
Price Each 6" OAL PLUG CHAMFER Price Each
Size Threads Overall Hand Tap Spiral Pointed Size Threads Overall Hand Tap Spiral Pointed
Per Inch Length 795EX 796EX Per Inch Length 795EX 796EX
4 40 4 –– 31.02 1/4 20 6 32.54 36.72
5 40 4 –– 31.02 1/4 28 6 32.54 36.72
6 32 4 –– 31.02 5/16 18 6 33.84 38.16
6 32 6 –– 34.22 5/16 24 6 –– 38.16
6 40 4 –– 31.94 3/8 16 6 38.25 43.09
8 32 4 –– 31.94 3/8 24 4 –– 39.00
8 32 6 –– 34.22 3/8 24 6 –– 43.09
8 36 4 –– 31.94 7/16 14 6 –– 46.17
10 24 4 –– 31.94 7/16 20 6 –– 46.17
10 24 6 33.30 34.22 1/2 13 6 40.50 46.17
10 32 4 –– 31.94 1/2 13 12 –– 63.56
10 32 6 33.30 34.22 1/2 20 5 –– 41.20
12 24 6 –– 36.72 1/2 20 6 –– 46.17
