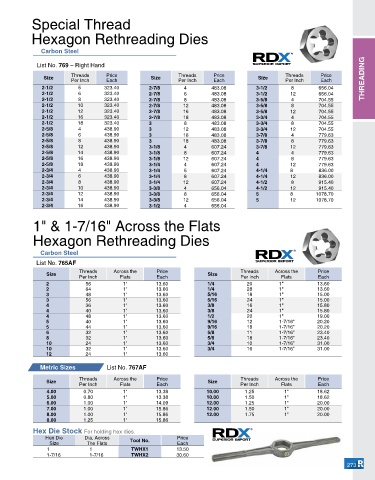

Page 275 - Republic Drill

Special Thread

Hexagon Rethreading Dies

Carbon Steel
List No. 769 – Right Hand

Size Threads Price Size Threads Price Size Threads Price THREADING
Each
Per Inch
Each
Per Inch
Each
Per Inch
2-1/2 5 323.40 2-7/8 4 483.08 3-1/2 8 656.04
2-1/2 6 323.40 2-7/8 6 483.08 3-1/2 12 656.04
2-1/2 8 323.40 2-7/8 8 483.08 3-5/8 4 704.55
2-1/2 10 323.40 2-7/8 12 483.08 3-5/8 8 704.55
2-1/2 12 323.40 2-7/8 16 483.08 3-5/8 12 704.55
2-1/2 16 323.40 2-7/8 18 483.08 3-3/4 4 704.55
2-1/2 18 323.40 3 8 483.08 3-3/4 8 704.55
2-5/8 4 438.90 3 12 483.08 3-3/4 12 704.55
2-5/8 6 438.90 3 16 483.08 3-7/8 4 779.63
2-5/8 8 438.90 3 18 483.08 3-7/8 8 779.63
2-5/8 12 438.90 3-1/8 4 607.24 3-7/8 12 779.63
2-5/8 14 438.90 3-1/8 8 607.24 4 4 779.63
2-5/8 16 438.90 3-1/8 12 607.24 4 8 779.63
2-5/8 18 438.90 3-1/4 4 607.24 4 12 779.63
2-3/4 4 438.90 3-1/4 5 607.24 4-1/4 8 836.00
2-3/4 6 438.90 3-1/4 8 607.24 4-1/4 12 836.00
2-3/4 8 438.90 3-1/4 12 607.24 4-1/2 8 915.40
2-3/4 10 438.90 3-3/8 4 656.04 4-1/2 12 915.40
2-3/4 12 438.90 3-3/8 8 656.04 5 8 1078.70
2-3/4 14 438.90 3-3/8 12 656.04 5 12 1078.70
2-3/4 16 438.90 3-1/2 4 656.04
1" & 1-7/16" Across the Flats

Hexagon Rethreading Dies

Carbon Steel
List No. 765AF
Threads Across the Price Threads Across the Price
Size Size
Per Inch Flats Each Per Inch Flats Each
2 56 1" 13.60 1/4 20 1" 13.60
2 64 1" 13.60 1/4 28 1" 13.60
3 48 1" 13.60 5/16 18 1" 15.00
3 56 1" 13.60 5/16 24 1" 15.00
4 36 1" 13.60 3/8 16 1" 15.80
4 40 1" 13.60 3/8 24 1" 15.80
4 48 1" 13.60 1/2 20 1" 19.00
5 40 1" 13.60 9/16 12 1-7/16" 20.20
5 44 1" 13.60 9/16 18 1-7/16" 20.20
6 32 1" 13.60 5/8 11 1-7/16" 23.40
8 32 1" 13.60 5/8 18 1-7/16" 23.40
10 24 1" 13.60 3/4 10 1-7/16" 31.00
10 32 1" 13.60 3/4 16 1-7/16" 31.00
12 24 1" 13.60
Metric Sizes List No. 767AF

Size Threads Across the Price Size Threads Across the Price
Per Inch Flats Each Per Inch Flats Each
4.00 0.70 1" 13.38 10.00 1.25 1" 18.62
5.00 0.80 1" 13.38 10.00 1.50 1" 18.62
6.00 1.00 1" 14.09 12.00 1.25 1" 20.00
7.00 1.00 1" 15.86 12.00 1.50 1" 20.00
8.00 1.00 1" 15.86 12.00 1.75 1" 20.00
8.00 1.25 1" 15.86
Hex Die Stock For holding hex dies.
Hex Die Dia, Across Tool No. Price
Size The Flats Each
1 1 TWHX1 13.50
1-7/16 1-7/16 TWHX2 30.60
273
