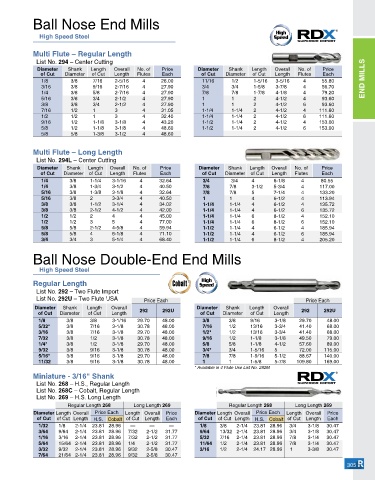

Page 307 - Republic Drill

Ball Nose End Mills

High Speed Steel

Multi Flute – Regular Length
List No. 294 – Center Cutting
Diameter Shank Length Overall No. of Price Diameter Shank Length Overall No. of Price
of Cut Diameter of Cut Length Flutes Each of Cut Diameter of Cut Length Flutes Each
1/8 3/8 7/16 2-5/16 4 26.00 11/16 1/2 1-5/16 3-5/16 4 55.80 END MILLS
3/16 3/8 9/16 2-7/16 4 27.90 3/4 3/4 1-5/8 3-7/8 4 56.70
1/4 3/8 5/8 2-7/16 4 27.90 7/8 7/8 1-7/8 4-1/8 4 79.20
5/16 3/8 3/4 2-1/2 4 27.90 1 1 2 4-1/2 4 93.60
3/8 3/8 3/4 2-1/2 4 27.90 1 1 2 4-1/2 6 93.60
7/16 1/2 1 3 4 31.05 1-1/4 1-1/4 2 4-1/2 4 111.60
1/2 1/2 1 3 4 32.40 1-1/4 1-1/4 2 4-1/2 6 111.60
9/16 1/2 1-1/8 3-1/8 4 43.20 1-1/2 1-1/4 2 4-1/2 4 153.00
5/8 1/2 1-1/8 3-1/8 4 48.60 1-1/2 1-1/4 2 4-1/2 6 153.00
5/8 5/8 1-3/8 3-1/2 4 48.60

Multi Flute – Long Length
List No. 294L – Center Cutting
Diameter Shank Length Overall No. of Price Diameter Shank Length Overall No. of Price
of Cut Diameter of Cut Length Flutes Each of Cut Diameter of Cut Length Flutes Each
1/4 3/8 1-1/4 3-1/16 4 32.64 3/4 3/4 4 6-1/8 4 80.55
1/4 3/8 1-3/4 3-1/2 4 40.50 7/8 7/8 3-1/2 5-3/4 4 117.00
5/16 3/8 1-3/8 3-1/8 4 32.64 7/8 7/8 5 7-1/4 4 133.20
5/16 3/8 2 3-3/4 4 40.50 1 1 4 6-1/2 4 113.94
3/8 3/8 1-1/2 3-1/4 4 34.02 1-1/4 1-1/4 4 6-1/2 4 135.72
3/8 3/8 2-1/2 4-1/2 4 42.00 1-1/4 1-1/4 4 6-1/2 6 135.72
1/2 1/2 2 4 4 45.00 1-1/4 1-1/4 6 8-1/2 4 152.10
1/2 1/2 3 5 4 77.00 1-1/4 1-1/4 6 8-1/2 6 152.10
5/8 5/8 2-1/2 4-5/8 4 59.94 1-1/2 1-1/4 4 6-1/2 4 185.94
5/8 5/8 4 6-1/8 4 71.10 1-1/2 1-1/4 4 6-1/2 6 185.94
3/4 3/4 3 5-1/4 4 68.40 1-1/2 1-1/4 6 8-1/2 4 205.20

Ball Nose Double-End End Mills

High Speed Steel

Regular Length
List No. 292 – Two Flute Import
List No. 292U – Two Flute USA Price Each Price Each
Diameter Shank Length Overall Diameter Shank Length Overall
of Cut Diameter of Cut Length 292 292U of Cut Diameter of Cut Length 292 292U
1/8 3/8 3/8 3-1/16 29.70 48.00 3/8 3/8 9/16 3-1/8 29.70 48.00
5/32* 3/8 7/16 3-1/8 30.78 48.00 7/16 1/2 13/16 3-3/4 41.40 68.00
3/16 3/8 7/16 3-1/8 29.70 48.00 1/2* 1/2 13/16 3-3/4 41.40 68.00
7/32 3/8 1/2 3-1/8 30.78 48.00 9/16 1/2 1-1/8 3-1/8 49.50 79.00
1/4* 3/8 1/2 3-1/8 29.70 48.00 5/8 5/8 1-1/8 4-1/2 57.60 89.00
9/32 3/8 9/16 3-1/8 30.78 48.00 3/4* 3/4 1-5/16 5 72.00 115.00
5/16* 3/8 9/16 3-1/8 29.70 48.00 7/8 7/8 1-9/16 5-1/2 88.67 140.00
11/32 3/8 9/16 3-1/8 30.78 48.00 1 1 1-5/8 5-7/8 109.80 169.00
* Available in 4 Flute Use List No. 292M
Miniature - 3/16" Shank
List No. 268 – H.S., Regular Length
List No. 268C – Cobalt, Regular Length
List No. 269 – H.S. Long Length
Regular Length 268 Long Length 269 Regular Length 268 Long Length 269
Diameter Length Overall Price Each Length Overall Price Diameter Length Overall Price Each Length Overall Price
of Cut of Cut Length H.S. Cobalt of Cut Length Each of Cut of Cut Length H.S. Cobalt of Cut Length Each
1/32 1/8 2-1/4 23.81 28.96 — — — 1/8 3/8 2-1/4 23.81 28.96 3/4 3-1/8 30.47
3/64 9/64 2-1/4 23.81 28.96 7/32 2-1/2 31.77 9/64 13/32 2-1/4 23.81 28.96 3/4 3-1/8 30.47
1/16 3/16 2-1/4 23.81 28.96 7/32 2-1/2 31.77 5/32 7/16 2-1/4 23.81 28.96 7/8 3-1/4 30.47
5/64 15/64 2-1/4 23.81 28.96 1/4 2-1/2 31.77 11/64 1/2 2-1/4 23.81 28.96 7/8 3-1/4 30.47
3/32 9/32 2-1/4 23.81 28.96 9/32 2-5/8 30.47 3/16 1/2 2-1/4 24.17 28.96 1 3-3/8 30.47
7/64 21/64 2-1/4 23.81 28.96 9/32 2-5/8 30.47
