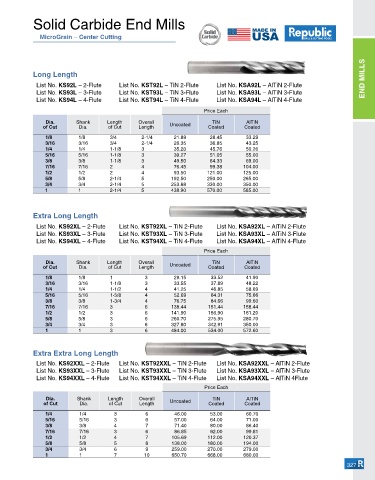

Page 329 - Republic Drill

Solid Carbide End Mills

MicroGrain – Center Cutting

Long Length END MILLS

List No. KS92L – 2-Flute List No. KST92L – TiN 2-Flute List No. KSA92L – AlTiN 2-Flute
List No. KS93L – 3-Flute List No. KST93L – TiN 3-Flute List No. KSA93L – AlTiN 3-Flute
List No. KS94L – 4-Flute List No. KST94L – TiN 4-Flute List No. KSA94L – AlTiN 4-Flute
Price Each
Dia. Shank Length Overall TiN AlTiN
of Cut Dia. of Cut Length Uncoated Coated Coated
1/8 1/8 3/4 2-1/4 21.89 28.45 33.29
3/16 3/16 3/4 2-1/4 26.35 36.85 43.25
1/4 1/4 1-1/8 3 35.20 45.76 50.26
5/16 5/16 1-1/8 3 39.27 51.05 55.00
3/8 3/8 1-1/8 3 49.50 64.33 69.00
7/16 7/16 2 4 76.45 99.38 104.00
1/2 1/2 2 4 93.50 121.00 125.00
5/8 5/8 2-1/4 5 192.50 250.00 265.00
3/4 3/4 2-1/4 5 253.88 330.00 350.00
1 1 2-1/4 5 438.90 570.00 585.00

Extra Long Length
List No. KS92XL – 2-Flute List No. KST92XL – TiN 2-Flute List No. KSA92XL – AlTiN 2-Flute
List No. KS93XL – 3-Flute List No. KST93XL – TiN 3-Flute List No. KSA93XL – AlTiN 3-Flute
List No. KS94XL – 4-Flute List No. KST94XL – TiN 4-Flute List No. KSA94XL – AlTiN 4-Flute

Price Each
Dia. Shank Length Overall TiN AlTiN
of Cut Dia. of Cut Length Uncoated Coated Coated
1/8 1/8 1 3 29.15 33.52 41.90
3/16 3/16 1-1/8 3 33.55 37.89 48.22
1/4 1/4 1-1/2 4 41.25 46.85 58.69
5/16 5/16 1-5/8 4 52.69 64.31 75.66
3/8 3/8 1-3/4 4 76.75 84.66 99.60
7/16 7/16 3 6 138.44 151.44 158.44
1/2 1/2 3 6 141.90 156.90 161.20
5/8 5/8 3 6 260.70 275.95 280.70
3/4 3/4 3 6 327.80 342.91 350.00
1 1 3 6 484.00 534.00 572.60

Extra Extra Long Length
List No. KS92XXL – 2-Flute List No. KST92XXL – TiN 2-Flute List No. KSA92XXL – AlTiN 2-Flute
List No. KS93XXL – 3-Flute List No. KST93XXL – TiN 3-Flute List No. KSA93XXL – AlTiN 3-Flute
List No. KS94XXL – 4-Flute List No. KST94XXL – TiN 4-Flute List No. KSA94XXL – AlTiN 4Flute
Price Each

Dia. Shank Length Overall TiN AlTiN
of Cut Dia. of Cut Length Uncoated Coated Coated
1/4 1/4 3 6 46.00 53.00 60.70
5/16 5/16 3 6 57.00 64.00 71.00
3/8 3/8 4 7 71.40 80.00 86.40
7/16 7/16 3 6 86.85 92.00 99.81
1/2 1/2 4 7 105.69 112.00 120.37
5/8 5/8 5 8 138.00 180.00 194.00
3/4 3/4 6 9 259.00 270.00 279.00
1 1 7 10 650.70 668.00 680.00
327
