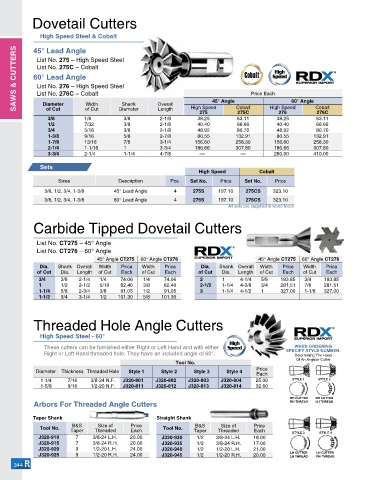

Page 346 - Republic Drill

Dovetail Cutters

High Speed Steel & Cobalt
45° Lead Angle
SAWS & CUTTERS List No. 275 – High Speed Steel Price Each

List No. 275C – Cobalt
60° Lead Angle
List No. 276 – High Speed Steel
List No. 276C – Cobalt
60° Angle
45° Angle
Diameter
Shank
Width
of Cut
Length
of Cut
276
276C
275C
275
3/8 1/8 Diameter Overall High Speed Cobalt High Speed Cobalt
63.11
38.25
63.11
38.25
3/8
2-1/8
1/2 7/32 3/8 2-1/8 40.40 66.66 40.40 66.66
3/4 5/16 3/8 2-1/8 48.92 80.70 48.92 80.70
1-3/8 9/16 5/8 2-7/8 80.55 132.91 80.55 132.91
1-7/8 13/16 7/8 3-1/4 156.60 258.30 156.60 258.30
2-1/4 1-1/16 1 3-3/4 186.66 307.80 186.66 307.80
3-3/4 2-1/4 1-1/4 4-7/8 –– –– 280.00 410.00
Sets
High Speed Cobalt
Sizes Description Pcs. Set No. Price Set No. Price
3/8, 1/2, 3/4, 1-3/8 45° Lead Angle 4 275S 197.10 275CS 323.10
3/8, 1/2, 3/4, 1-3/8 60° Lead Angle 4 276S 197.10 276CS 323.10
All sets are supplied in wood block
Carbide Tipped Dovetail Cutters
List No. CT275 – 45° Angle
List No. CT276 – 60° Angle
45° Angle CT275 60° Angle CT276 45° Angle CT275 60° Angle CT276
Dia. Shank Overall Width Price Width Price Dia. Shank Overall Width Price Width Price
of Cut Dia. Length of Cut Each of Cut Each of Cut Dia. Length of Cut Each of Cut Each
3/4 3/8 2-1/4 1/4 74.06 1/4 74.06 2 1 4-1/4 5/8 193.85 3/4 193.85
1 1/2 2-1/2 5/16 82.46 3/8 82.46 2-1/2 1-1/4 4-3/8 3/4 281.51 7/8 281.51
1-1/4 5/8 2-3/4 3/8 91.05 1/2 91.05 3 1-1/4 4-1/2 1 327.00 1-1/8 327.00
1-1/2 3/4 3-1/4 1/2 101.30 5/8 101.30

Threaded Hole Angle Cutters

High Speed Steel - 60°
These cutters can be furnished either Right or Left Hand and with either WHEN ORDERING
Right or Left Hand threaded hole. They have an included angle of 60°. SPECIFY STYLE NUMBER.
Determining The Hand
Of An Angular Cutter
Tool No.
Diameter Thickness Threaded Hole Style 1 Style 2 Style 3 Style 4 Price
Each
1-1/4 7/16 3/8-24 N.F. J320-801 J320-802 J320-803 J320-804 25.00 STYLE 1 STYLE 2
1-5/8 9/16 1/2-20 N.F. J320-811 J320-812 J320-813 J320-814 32.60

RH CUTTER RH CUTTER
Arbors For Threaded Angle Cutters RH THREAD LH THREAD

Taper Shank Straight Shank
Size of
B&S
Size of
B&S
Tool No. Taper Threaded Price Tool No. Taper Threaded Price
Each
Each
J320-910 7 3/8-24 L.H. 20.00 J320-930 1/2 3/8-24 L.H. 18.00 STYLE 3 STYLE 4
J320-915 7 3/8-24 R.H. 20.00 J320-935 1/2 3/8-24 R.H. 17.00
J320-920 9 1/2-20 L.H. 24.00 J320-940 1/2 1/2-20 L.H. 21.00
J320-925 9 1/2-20 R.H. 24.00 J320-945 1/2 1/2-20 R.H. 20.00 LH CUTTER LH CUTTER
RH THREAD
LH THREAD
