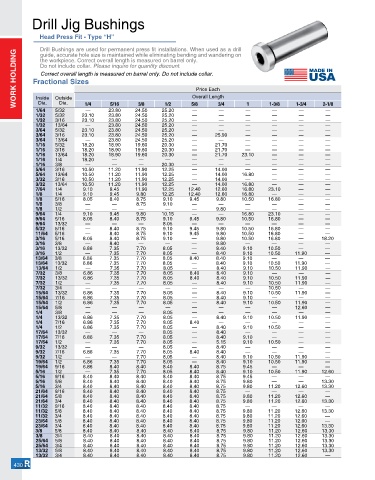

Page 432 - Republic Drill

Drill Jig Bushings

Head Press Fit - Type “H”
Drill Bushings are used for permanent press fit installations. When used as a drill
WORK HOLDING Fractional Sizes Price Each
guide, accurate hole size is maintained while eliminating bending and wandering on
the workpiece. Correct overall length is measured on barrel only.
Do not include collar. Please inquire for quantity discount.
Correct overall length is measured on barrel only. Do not include collar.

Overall Length
Inside
Dia.
Dia.
3/8
1/2
1
5/16
—
—
—
—
—
1/64 Outside 1/4 23.80 24.50 25.20 5/8 3/4 — 1-3/8 1-3/4 2-1/8
—
5/32
1/32 5/32 23.10 23.80 24.50 25.20 — — — — — —
1/32 3/16 23.10 23.80 24.50 25.20 — — — — — —
1/32 13/64 — 23.80 24.50 25.20 — — — — — —
3/64 5/32 23.10 23.80 24.50 25.20 — — — — — —
3/64 3/16 23.10 23.80 24.50 25.20 — 25.90 — — — —
3/64 13/64 — 23.80 24.50 25.20 — — — — — —
1/16 5/32 18.20 18.90 19.60 20.30 — 21.70 — — — —
1/16 3/16 18.20 18.90 19.60 20.30 — 21.70 — — — —
1/16 13/64 18.20 18.90 19.60 20.30 — 21.70 23.10 — — —
1/16 1/4 18.20 — — — — — — — — —
1/16 3/8 — — — 20.30 — — — — — —
5/64 3/16 10.50 11.20 11.90 12.25 — 14.00 — — — —
5/64 13/64 10.50 11.20 11.90 12.25 — 14.00 16.80 — — —
3/32 3/16 10.50 11.20 11.90 12.25 — 14.00 — — — —
3/32 13/64 10.50 11.20 11.90 12.25 — 14.00 16.80 — — —
7/64 1/4 9.10 9.45 11.90 12.25 12.40 12.60 16.80 23.10 — —
1/8 1/4 9.10 9.45 9.80 12.25 12.40 12.60 16.80 — — —
1/8 5/16 8.05 8.40 8.75 9.10 9.45 9.80 10.50 16.80 — —
1/8 3/8 — — 8.75 9.10 — — — — — —
1/8 1/2 — — — — — 9.80 — — — —
9/64 1/4 9.10 9.45 9.80 10.15 — — 16.80 23.10 — —
9/64 5/16 8.05 8.40 8.75 9.10 9.45 9.80 10.50 16.80 — —
9/64 13/32 — — — 8.05 — — — — — —
5/32 5/16 — 8.40 8.75 9.10 9.45 9.80 10.50 16.80 — —
11/64 5/16 — 8.40 8.75 9.10 9.45 9.80 10.50 16.80 — —
3/16 5/16 8.05 8.40 8.75 9.10 — 9.80 10.50 16.80 — 18.20
3/16 3/8 — 8.40 — — — 9.80 — — — —
3/16 13/32 6.86 7.35 7.70 8.05 — 8.40 9.10 10.50 — —
3/16 1/2 — 7.35 7.70 8.05 — 8.40 9.10 10.50 11.90 —
13/64 3/8 6.86 7.35 7.70 8.05 8.40 8.40 9.10 — — —
13/64 13/32 6.86 7.35 7.70 8.05 — 8.40 9.10 10.50 11.90 —
13/64 1/2 — 7.35 7.70 8.05 — 8.40 9.10 10.50 11.90 —
7/32 3/8 6.86 7.35 7.70 8.05 8.40 8.40 9.10 — — —
7/32 13/32 6.86 7.35 7.70 8.05 8.40 8.40 9.10 10.50 11.90 —
7/32 1/2 — 7.35 7.70 8.05 — 8.40 9.10 10.50 11.90 —
7/32 3/4 — — — — — — — 10.50 — —
15/64 13/32 6.86 7.35 7.70 8.05 — 8.40 9.10 10.50 11.90 —
15/64 7/16 6.86 7.35 7.70 8.05 — 8.40 9.10 — — —
15/64 1/2 6.86 7.35 7.70 8.05 — 8.40 9.10 10.50 11.90 —
15/64 5/8 — — — — — — — — 12.60 —
1/4 3/8 — — — 8.05 — — — — — —
1/4 13/32 6.86 7.35 7.70 8.05 — 8.40 9.10 10.50 11.90 —
1/4 7/16 6.86 7.35 7.70 8.05 8.40 — — — — —
1/4 1/2 6.86 7.35 7.70 8.05 — 8.40 9.10 10.50 — —
17/64 13/32 — — — 8.05 — 8.40 — — — —
17/64 7/16 6.86 7.35 7.70 8.05 — 8.40 9.10 — — —
17/64 1/2 — 7.35 7.70 8.05 — 5.15 9.10 10.50 — —
9/32 13/32 — — — 8.05 — 8.40 — — — —
9/32 7/16 6.86 7.35 7.70 8.05 8.40 8.40 — — — —
9/32 1/2 — — 7.70 8.05 — 8.40 9.10 10.50 11.90 —
19/64 1/2 6.86 7.35 7.70 8.05 — 8.40 9.10 10.50 11.90 —
19/64 9/16 6.86 8.40 8.40 8.40 8.40 8.75 9.45 — — —
5/16 1/2 — 7.35 7.70 8.05 8.40 8.40 9.10 10.50 11.90 12.60
5/16 9/16 8.40 8.40 8.40 8.40 8.40 8.75 9.45 — — —
5/16 5/8 8.40 8.40 8.40 8.40 8.40 8.75 9.80 — — 13.30
5/16 3/4 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 13.30
21/64 9/16 8.40 8.40 8.40 8.40 8.40 8.75 — — — —
21/64 5/8 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 —
21/64 3/4 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 13.30
11/32 9/16 8.40 8.40 8.40 8.40 8.40 8.75 — — — —
11/32 5/8 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 13.30
11/32 3/4 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 —
23/64 5/8 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 —
23/64 3/4 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 13.30
3/8 5/8 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 13.30
3/8 3/4 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 13.30
25/64 5/8 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 13.30
25/64 3/4 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 13.30
13/32 5/8 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 13.30
13/32 3/4 8.40 8.40 8.40 8.40 8.40 8.75 9.80 11.20 12.60 —
