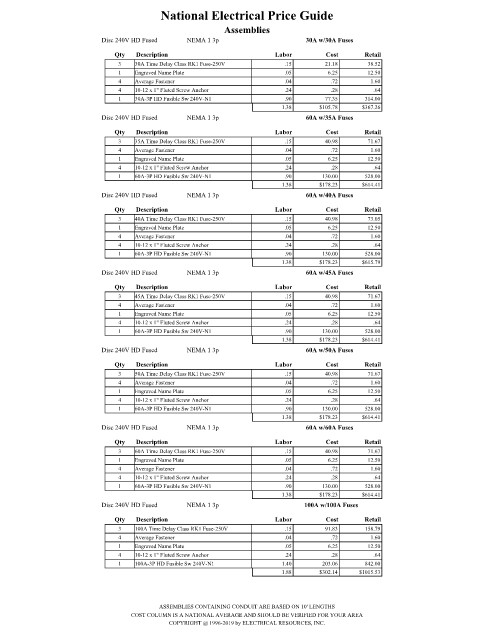

Page 1572 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Disc 240V HD Fused NEMA 1 3p 30A w/30A Fuses
Qty Description Labor Cost Retail
3 30A Time Delay Class RK1 Fuse-250V .15 21.18 38.52
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 30A-3P HD Fusible Sw 240V-N1 .90 77.35 314.00
1.38 $105.78 $367.26
Disc 240V HD Fused NEMA 1 3p 60A w/35A Fuses
Qty Description Labor Cost Retail
3 35A Time Delay Class RK1 Fuse-250V .15 40.98 71.67
4 Average Fastener .04 .72 1.60
1 Engraved Name Plate .05 6.25 12.50
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 60A-3P HD Fusible Sw 240V-N1 .90 130.00 528.00
1.38 $178.23 $614.41
Disc 240V HD Fused NEMA 1 3p 60A w/40A Fuses
Qty Description Labor Cost Retail
3 40A Time Delay Class RK1 Fuse-250V .15 40.98 73.05
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 60A-3P HD Fusible Sw 240V-N1 .90 130.00 528.00
1.38 $178.23 $615.79
Disc 240V HD Fused NEMA 1 3p 60A w/45A Fuses
Qty Description Labor Cost Retail
3 45A Time Delay Class RK1 Fuse-250V .15 40.98 71.67
4 Average Fastener .04 .72 1.60
1 Engraved Name Plate .05 6.25 12.50
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 60A-3P HD Fusible Sw 240V-N1 .90 130.00 528.00
1.38 $178.23 $614.41
Disc 240V HD Fused NEMA 1 3p 60A w/50A Fuses
Qty Description Labor Cost Retail
3 50A Time Delay Class RK1 Fuse-250V .15 40.98 71.67
4 Average Fastener .04 .72 1.60
1 Engraved Name Plate .05 6.25 12.50
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 60A-3P HD Fusible Sw 240V-N1 .90 130.00 528.00
1.38 $178.23 $614.41
Disc 240V HD Fused NEMA 1 3p 60A w/60A Fuses
Qty Description Labor Cost Retail
3 60A Time Delay Class RK1 Fuse-250V .15 40.98 71.67
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 60A-3P HD Fusible Sw 240V-N1 .90 130.00 528.00
1.38 $178.23 $614.41
Disc 240V HD Fused NEMA 1 3p 100A w/100A Fuses
Qty Description Labor Cost Retail
3 100A Time Delay Class RK1 Fuse-250V .15 91.83 158.79
4 Average Fastener .04 .72 1.60
1 Engraved Name Plate .05 6.25 12.50
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 100A-3P HD Fusible Sw 240V-N1 1.40 203.06 842.00
1.88 $302.14 $1015.53

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
