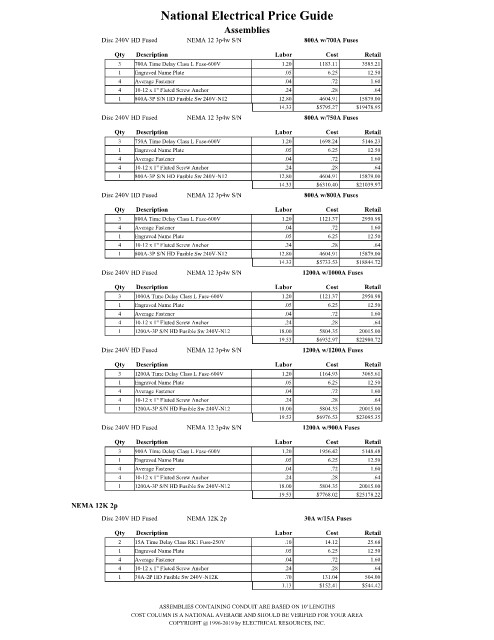

Page 1598 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Disc 240V HD Fused NEMA 12 3p4w S/N 800A w/700A Fuses
Qty Description Labor Cost Retail
3 700A Time Delay Class L Fuse-600V 1.20 1183.11 3585.21
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 800A-3P S/N HD Fusible Sw 240V-N12 12.80 4604.91 15879.00
14.33 $5795.27 $19478.95
Disc 240V HD Fused NEMA 12 3p4w S/N 800A w/750A Fuses
Qty Description Labor Cost Retail
3 750A Time Delay Class L Fuse-600V 1.20 1698.24 5146.23
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 800A-3P S/N HD Fusible Sw 240V-N12 12.80 4604.91 15879.00
14.33 $6310.40 $21039.97
Disc 240V HD Fused NEMA 12 3p4w S/N 800A w/800A Fuses
Qty Description Labor Cost Retail
3 800A Time Delay Class L Fuse-600V 1.20 1121.37 2950.98
4 Average Fastener .04 .72 1.60
1 Engraved Name Plate .05 6.25 12.50
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 800A-3P S/N HD Fusible Sw 240V-N12 12.80 4604.91 15879.00
14.33 $5733.53 $18844.72
Disc 240V HD Fused NEMA 12 3p4w S/N 1200A w/1000A Fuses
Qty Description Labor Cost Retail
3 1000A Time Delay Class L Fuse-600V 1.20 1121.37 2950.98
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 1200A-3P S/N HD Fusible Sw 240V-N12 18.00 5804.35 20015.00
19.53 $6932.97 $22980.72
Disc 240V HD Fused NEMA 12 3p4w S/N 1200A w/1200A Fuses
Qty Description Labor Cost Retail
3 1200A Time Delay Class L Fuse-600V 1.20 1164.93 3065.61
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 1200A-3P S/N HD Fusible Sw 240V-N12 18.00 5804.35 20015.00
19.53 $6976.53 $23095.35
Disc 240V HD Fused NEMA 12 3p4w S/N 1200A w/900A Fuses
Qty Description Labor Cost Retail
3 900A Time Delay Class L Fuse-600V 1.20 1956.42 5148.48
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 1200A-3P S/N HD Fusible Sw 240V-N12 18.00 5804.35 20015.00
19.53 $7768.02 $25178.22
NEMA 12K 2p
Disc 240V HD Fused NEMA 12K 2p 30A w/15A Fuses
Qty Description Labor Cost Retail
2 15A Time Delay Class RK1 Fuse-250V .10 14.12 25.68
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 30A-2P HD Fusible Sw 240V-N12K .70 131.04 504.00
1.13 $152.41 $544.42

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
