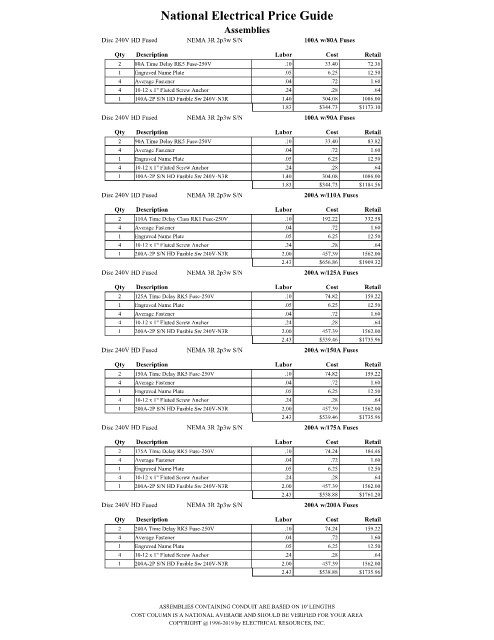

National Electrical Price Guide

Assemblies
Disc 240V HD Fused NEMA 3R 2p3w S/N 100A w/80A Fuses
Qty Description Labor Cost Retail
2 80A Time Delay RK5 Fuse-250V .10 33.40 72.36
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 100A-2P S/N HD Fusible Sw 240V-N3R 1.40 304.08 1086.00
1.83 $344.73 $1173.10
Disc 240V HD Fused NEMA 3R 2p3w S/N 100A w/90A Fuses
Qty Description Labor Cost Retail
2 90A Time Delay RK5 Fuse-250V .10 33.40 83.82
4 Average Fastener .04 .72 1.60
1 Engraved Name Plate .05 6.25 12.50
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 100A-2P S/N HD Fusible Sw 240V-N3R 1.40 304.08 1086.00
1.83 $344.73 $1184.56
Disc 240V HD Fused NEMA 3R 2p3w S/N 200A w/110A Fuses
Qty Description Labor Cost Retail
2 110A Time Delay Class RK1 Fuse-250V .10 192.22 332.58
4 Average Fastener .04 .72 1.60
1 Engraved Name Plate .05 6.25 12.50
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 200A-2P S/N HD Fusible Sw 240V-N3R 2.00 457.39 1562.00
2.43 $656.86 $1909.32
Disc 240V HD Fused NEMA 3R 2p3w S/N 200A w/125A Fuses
Qty Description Labor Cost Retail
2 125A Time Delay RK5 Fuse-250V .10 74.82 159.22
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 200A-2P S/N HD Fusible Sw 240V-N3R 2.00 457.39 1562.00
2.43 $539.46 $1735.96
Disc 240V HD Fused NEMA 3R 2p3w S/N 200A w/150A Fuses
Qty Description Labor Cost Retail
2 150A Time Delay RK5 Fuse-250V .10 74.82 159.22
4 Average Fastener .04 .72 1.60
1 Engraved Name Plate .05 6.25 12.50
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 200A-2P S/N HD Fusible Sw 240V-N3R 2.00 457.39 1562.00
2.43 $539.46 $1735.96
Disc 240V HD Fused NEMA 3R 2p3w S/N 200A w/175A Fuses
Qty Description Labor Cost Retail
2 175A Time Delay RK5 Fuse-250V .10 74.24 184.46
4 Average Fastener .04 .72 1.60
1 Engraved Name Plate .05 6.25 12.50
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 200A-2P S/N HD Fusible Sw 240V-N3R 2.00 457.39 1562.00
2.43 $538.88 $1761.20
Disc 240V HD Fused NEMA 3R 2p3w S/N 200A w/200A Fuses
Qty Description Labor Cost Retail
2 200A Time Delay RK5 Fuse-250V .10 74.24 159.22
4 Average Fastener .04 .72 1.60
1 Engraved Name Plate .05 6.25 12.50
4 10-12 x 1" Fluted Screw Anchor .24 .28 .64
1 200A-2P S/N HD Fusible Sw 240V-N3R 2.00 457.39 1562.00
2.43 $538.88 $1735.96

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
