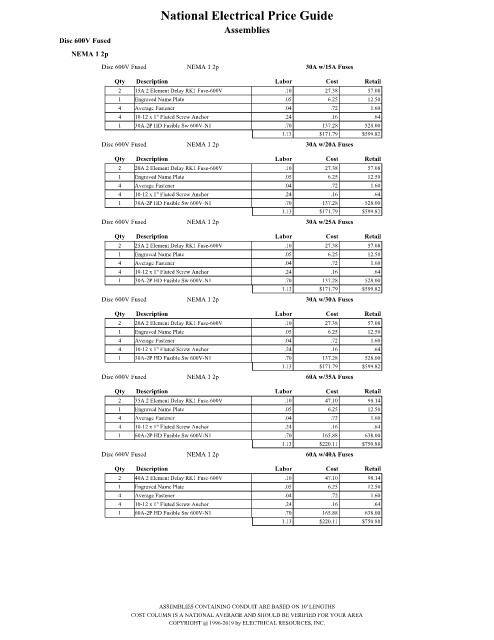

Page 1642 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Disc 600V Fused
NEMA 1 2p
Disc 600V Fused NEMA 1 2p 30A w/15A Fuses
Qty Description Labor Cost Retail
2 15A 2 Element Delay RK1 Fuse-600V .10 27.38 57.08
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .16 .64
1 30A-2P HD Fusible Sw 600V-N1 .70 137.28 528.00
1.13 $171.79 $599.82
Disc 600V Fused NEMA 1 2p 30A w/20A Fuses
Qty Description Labor Cost Retail
2 20A 2 Element Delay RK1 Fuse-600V .10 27.38 57.08
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .16 .64
1 30A-2P HD Fusible Sw 600V-N1 .70 137.28 528.00
1.13 $171.79 $599.82
Disc 600V Fused NEMA 1 2p 30A w/25A Fuses
Qty Description Labor Cost Retail
2 25A 2 Element Delay RK1 Fuse-600V .10 27.38 57.08
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .16 .64
1 30A-2P HD Fusible Sw 600V-N1 .70 137.28 528.00
1.13 $171.79 $599.82
Disc 600V Fused NEMA 1 2p 30A w/30A Fuses
Qty Description Labor Cost Retail
2 20A 2 Element Delay RK1 Fuse-600V .10 27.38 57.08
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .16 .64
1 30A-2P HD Fusible Sw 600V-N1 .70 137.28 528.00
1.13 $171.79 $599.82
Disc 600V Fused NEMA 1 2p 60A w/35A Fuses
Qty Description Labor Cost Retail
2 35A 2 Element Delay RK1 Fuse-600V .10 47.10 98.14
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .16 .64
1 60A-2P HD Fusible Sw 600V-N1 .70 165.88 638.00
1.13 $220.11 $750.88
Disc 600V Fused NEMA 1 2p 60A w/40A Fuses
Qty Description Labor Cost Retail
2 40A 2 Element Delay RK1 Fuse-600V .10 47.10 98.14
1 Engraved Name Plate .05 6.25 12.50
4 Average Fastener .04 .72 1.60
4 10-12 x 1" Fluted Screw Anchor .24 .16 .64
1 60A-2P HD Fusible Sw 600V-N1 .70 165.88 638.00
1.13 $220.11 $750.88

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
