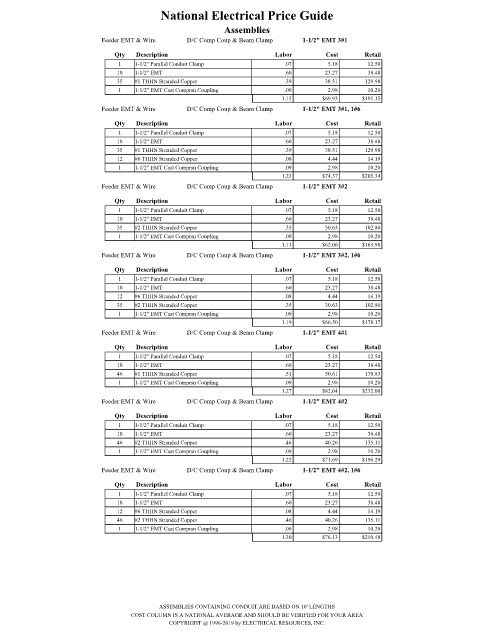

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Comp Coup & Beam Clamp 1-1/2" EMT 3#1
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
35 #1 THHN Stranded Copper .39 38.51 129.98
1 1-1/2" EMT Cast Comprsn Coupling .09 2.98 10.20
1.15 $69.93 $191.15
Feeder EMT & Wire D/C Comp Coup & Beam Clamp 1-1/2" EMT 3#1, 1#6
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
35 #1 THHN Stranded Copper .39 38.51 129.98
12 #6 THHN Stranded Copper .08 4.44 14.19
1 1-1/2" EMT Cast Comprsn Coupling .09 2.98 10.20
1.23 $74.37 $205.34
Feeder EMT & Wire D/C Comp Coup & Beam Clamp 1-1/2" EMT 3#2
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
35 #2 THHN Stranded Copper .35 30.63 102.80
1 1-1/2" EMT Cast Comprsn Coupling .09 2.98 10.20
1.11 $62.06 $163.98
Feeder EMT & Wire D/C Comp Coup & Beam Clamp 1-1/2" EMT 3#2, 1#6
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
35 #2 THHN Stranded Copper .35 30.63 102.80
1 1-1/2" EMT Cast Comprsn Coupling .09 2.98 10.20
1.19 $66.50 $178.17
Feeder EMT & Wire D/C Comp Coup & Beam Clamp 1-1/2" EMT 4#1
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
46 #1 THHN Stranded Copper .51 50.61 170.83
1 1-1/2" EMT Cast Comprsn Coupling .09 2.98 10.20
1.27 $82.04 $232.00
Feeder EMT & Wire D/C Comp Coup & Beam Clamp 1-1/2" EMT 4#2
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
46 #2 THHN Stranded Copper .46 40.26 135.11
1 1-1/2" EMT Cast Comprsn Coupling .09 2.98 10.20
1.22 $71.69 $196.29
Feeder EMT & Wire D/C Comp Coup & Beam Clamp 1-1/2" EMT 4#2, 1#6
Qty Description Labor Cost Retail
1 1-1/2" Parallel Conduit Clamp .07 5.18 12.50
10 1-1/2" EMT .60 23.27 38.48
12 #6 THHN Stranded Copper .08 4.44 14.19
46 #2 THHN Stranded Copper .46 40.26 135.11
1 1-1/2" EMT Cast Comprsn Coupling .09 2.98 10.20
1.30 $76.13 $210.48

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
