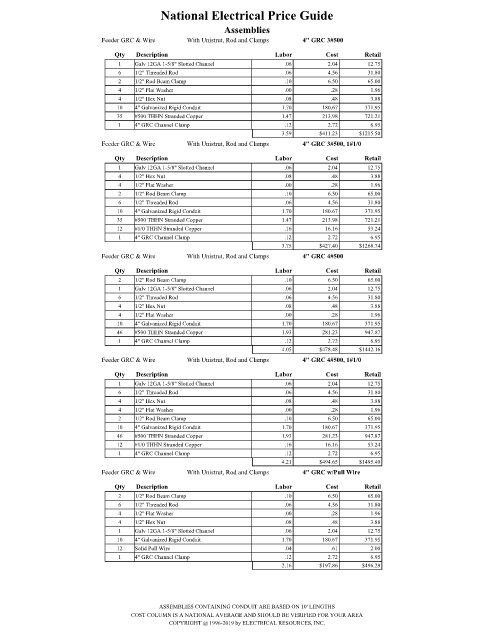

Page 2085 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder GRC & Wire With Unistrut, Rod and Clamps 4" GRC 3#500
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 4" Galvanized Rigid Conduit 1.70 180.67 371.95
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 4" GRC Channel Clamp .12 2.72 6.95
3.59 $411.23 $1215.50
Feeder GRC & Wire With Unistrut, Rod and Clamps 4" GRC 3#500, 1#1/0
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
10 4" Galvanized Rigid Conduit 1.70 180.67 371.95
35 #500 THHN Stranded Copper 1.47 213.98 721.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 4" GRC Channel Clamp .12 2.72 6.95
3.75 $427.40 $1268.74
Feeder GRC & Wire With Unistrut, Rod and Clamps 4" GRC 4#500
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
10 4" Galvanized Rigid Conduit 1.70 180.67 371.95
46 #500 THHN Stranded Copper 1.93 281.23 947.87
1 4" GRC Channel Clamp .12 2.72 6.95
4.05 $478.48 $1442.16
Feeder GRC & Wire With Unistrut, Rod and Clamps 4" GRC 4#500, 1#1/0
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 4" Galvanized Rigid Conduit 1.70 180.67 371.95
46 #500 THHN Stranded Copper 1.93 281.23 947.87
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 4" GRC Channel Clamp .12 2.72 6.95
4.21 $494.65 $1495.40
Feeder GRC & Wire With Unistrut, Rod and Clamps 4" GRC w/Pull Wire

Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 4" Galvanized Rigid Conduit 1.70 180.67 371.95
12 Solid Pull Wire .04 .61 2.00
1 4" GRC Channel Clamp .12 2.72 6.95
2.16 $197.86 $496.29

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
