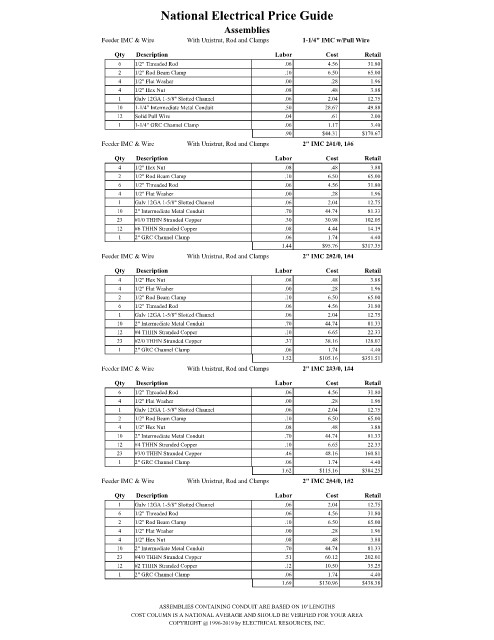

National Electrical Price Guide

Assemblies
Feeder IMC & Wire With Unistrut, Rod and Clamps 1-1/4" IMC w/Pull Wire
Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 1-1/4" Intermediate Metal Conduit .50 28.67 49.88
12 Solid Pull Wire .04 .61 2.00
1 1-1/4" GRC Channel Clamp .06 1.17 3.40
.90 $44.31 $170.67
Feeder IMC & Wire With Unistrut, Rod and Clamps 2" IMC 2#1/0, 1#6
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 2" Intermediate Metal Conduit .70 44.74 81.33
23 #1/0 THHN Stranded Copper .30 30.98 102.05
12 #6 THHN Stranded Copper .08 4.44 14.19
1 2" GRC Channel Clamp .06 1.74 4.40
1.44 $95.76 $317.35
Feeder IMC & Wire With Unistrut, Rod and Clamps 2" IMC 2#2/0, 1#4
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
4 1/2" Flat Washer .00 .28 1.96
2 1/2" Rod Beam Clamp .10 6.50 65.00
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 2" Intermediate Metal Conduit .70 44.74 81.33
12 #4 THHN Stranded Copper .10 6.65 22.33
23 #2/0 THHN Stranded Copper .37 38.16 128.07
1 2" GRC Channel Clamp .06 1.74 4.40
1.52 $105.16 $351.51
Feeder IMC & Wire With Unistrut, Rod and Clamps 2" IMC 2#3/0, 1#4

Qty Description Labor Cost Retail
6 1/2" Threaded Rod .06 4.56 31.80
4 1/2" Flat Washer .00 .28 1.96
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Hex Nut .08 .48 3.88
10 2" Intermediate Metal Conduit .70 44.74 81.33
12 #4 THHN Stranded Copper .10 6.65 22.33
23 #3/0 THHN Stranded Copper .46 48.16 160.81
1 2" GRC Channel Clamp .06 1.74 4.40
1.62 $115.16 $384.25
Feeder IMC & Wire With Unistrut, Rod and Clamps 2" IMC 2#4/0, 1#2
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
10 2" Intermediate Metal Conduit .70 44.74 81.33
23 #4/0 THHN Stranded Copper .51 60.12 202.01
12 #2 THHN Stranded Copper .12 10.50 35.25
1 2" GRC Channel Clamp .06 1.74 4.40
1.69 $130.96 $438.38

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
