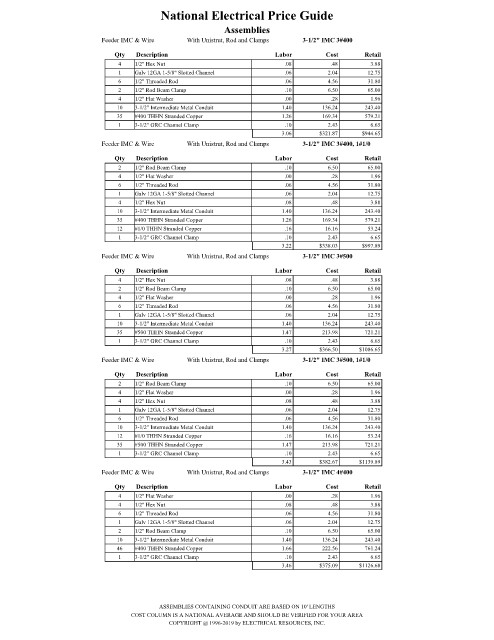

National Electrical Price Guide

Assemblies
Feeder IMC & Wire With Unistrut, Rod and Clamps 3-1/2" IMC 3#400
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
10 3-1/2" Intermediate Metal Conduit 1.40 136.24 243.40
35 #400 THHN Stranded Copper 1.26 169.34 579.21
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.06 $321.87 $944.65
Feeder IMC & Wire With Unistrut, Rod and Clamps 3-1/2" IMC 3#400, 1#1/0
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
4 1/2" Hex Nut .08 .48 3.88
10 3-1/2" Intermediate Metal Conduit 1.40 136.24 243.40
35 #400 THHN Stranded Copper 1.26 169.34 579.21
12 #1/0 THHN Stranded Copper .16 16.16 53.24
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.22 $338.03 $997.89
Feeder IMC & Wire With Unistrut, Rod and Clamps 3-1/2" IMC 3#500
Qty Description Labor Cost Retail
4 1/2" Hex Nut .08 .48 3.88
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
10 3-1/2" Intermediate Metal Conduit 1.40 136.24 243.40
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.27 $366.50 $1086.65
Feeder IMC & Wire With Unistrut, Rod and Clamps 3-1/2" IMC 3#500, 1#1/0
Qty Description Labor Cost Retail
2 1/2" Rod Beam Clamp .10 6.50 65.00
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
6 1/2" Threaded Rod .06 4.56 31.80
10 3-1/2" Intermediate Metal Conduit 1.40 136.24 243.40
12 #1/0 THHN Stranded Copper .16 16.16 53.24
35 #500 THHN Stranded Copper 1.47 213.98 721.21
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.43 $382.67 $1139.89
Feeder IMC & Wire With Unistrut, Rod and Clamps 3-1/2" IMC 4#400

Qty Description Labor Cost Retail
4 1/2" Flat Washer .00 .28 1.96
4 1/2" Hex Nut .08 .48 3.88
6 1/2" Threaded Rod .06 4.56 31.80
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
2 1/2" Rod Beam Clamp .10 6.50 65.00
10 3-1/2" Intermediate Metal Conduit 1.40 136.24 243.40
46 #400 THHN Stranded Copper 1.66 222.56 761.24
1 3-1/2" GRC Channel Clamp .10 2.43 6.65
3.46 $375.09 $1126.68

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
