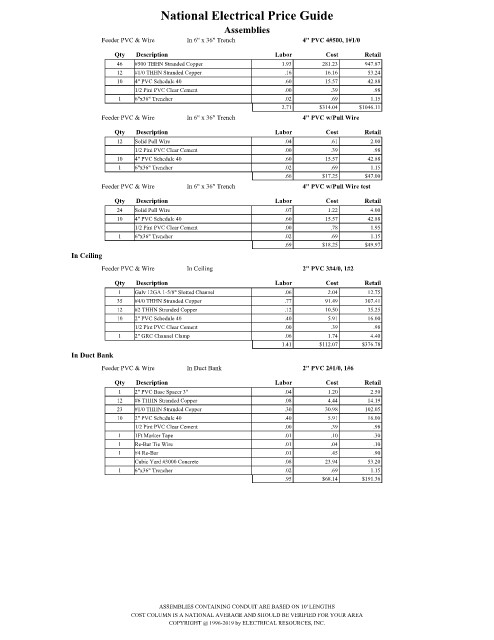

Page 2203 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder PVC & Wire In 6" x 36" Trench 4" PVC 4#500, 1#1/0
Qty Description Labor Cost Retail
46 #500 THHN Stranded Copper 1.93 281.23 947.87
12 #1/0 THHN Stranded Copper .16 16.16 53.24
10 4" PVC Schedule 40 .60 15.57 42.88
1/2 Pint PVC Clear Cement .00 .39 .98
1 6"x36" Trencher .02 .69 1.15
2.71 $314.04 $1046.11
Feeder PVC & Wire In 6" x 36" Trench 4" PVC w/Pull Wire
Qty Description Labor Cost Retail
12 Solid Pull Wire .04 .61 2.00
1/2 Pint PVC Clear Cement .00 .39 .98
10 4" PVC Schedule 40 .60 15.57 42.88
1 6"x36" Trencher .02 .69 1.15
.66 $17.25 $47.00
Feeder PVC & Wire In 6" x 36" Trench 4" PVC w/Pull Wire test
Qty Description Labor Cost Retail
24 Solid Pull Wire .07 1.22 4.00
10 4" PVC Schedule 40 .60 15.57 42.88
1/2 Pint PVC Clear Cement .00 .78 1.95
1 6"x36" Trencher .02 .69 1.15
.69 $18.25 $49.97
In Ceiling
Feeder PVC & Wire In Ceiling 2" PVC 3#4/0, 1#2
Qty Description Labor Cost Retail
1 Galv 12GA 1-5/8" Slotted Channel .06 2.04 12.75
35 #4/0 THHN Stranded Copper .77 91.49 307.41
12 #2 THHN Stranded Copper .12 10.50 35.25
10 2" PVC Schedule 40 .40 5.91 16.00
1/2 Pint PVC Clear Cement .00 .39 .98
1 2" GRC Channel Clamp .06 1.74 4.40
1.41 $112.07 $376.78
In Duct Bank
Feeder PVC & Wire In Duct Bank 2" PVC 2#1/0, 1#6

Qty Description Labor Cost Retail
1 2" PVC Base Spacer 3" .04 1.20 2.50
12 #6 THHN Stranded Copper .08 4.44 14.19
23 #1/0 THHN Stranded Copper .30 30.98 102.05
10 2" PVC Schedule 40 .40 5.91 16.00
1/2 Pint PVC Clear Cement .00 .39 .98
1 1Ft Marker Tape .01 .10 .30
1 Re-Bar Tie Wire .01 .04 .10
1 #4 Re-Bar .01 .45 .90
Cubic Yard #3000 Concrete .08 23.94 53.20
1 6"x36" Trencher .02 .69 1.15
.95 $68.14 $191.36

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
