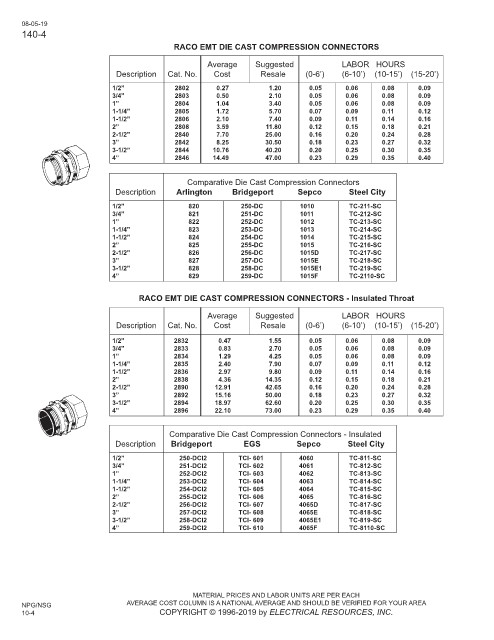

Page 250 - National Electrical Price Guide
P. 250
08-05-19
140-4
RACO EMT DIE CAST COMPRESSION CONNECTORS
Average Suggested LABOR HOURS
Description Cat. No. Cost Resale (0-6’) (6-10’) (10-15’) (15-20’)
1/2” 2802 0.27 1.20 0.05 0.06 0.08 0.09
3/4” 2803 0.50 2.10 0.05 0.06 0.08 0.09
1” 2804 1.04 3.40 0.05 0.06 0.08 0.09
1-1/4” 2805 1.72 5.70 0.07 0.09 0.11 0.12
1-1/2” 2806 2.10 7.40 0.09 0.11 0.14 0.16
2” 2808 3.59 11.80 0.12 0.15 0.18 0.21
2-1/2” 2840 7.70 25.00 0.16 0.20 0.24 0.28
3” 2842 8.25 30.50 0.18 0.23 0.27 0.32
3-1/2” 2844 10.76 40.20 0.20 0.25 0.30 0.35
4” 2846 14.49 47.00 0.23 0.29 0.35 0.40
Comparative Die Cast Compression Connectors
Description Arlington Bridgeport Sepco Steel City
1/2” 820 250-DC 1010 TC-211-SC
3/4” 821 251-DC 1011 TC-212-SC
1” 822 252-DC 1012 TC-213-SC
1-1/4” 823 253-DC 1013 TC-214-SC
1-1/2” 824 254-DC 1014 TC-215-SC
2” 825 255-DC 1015 TC-216-SC
2-1/2” 826 256-DC 1015D TC-217-SC
3” 827 257-DC 1015E TC-218-SC
3-1/2” 828 258-DC 1015E1 TC-219-SC
4” 829 259-DC 1015F TC-2110-SC
RACO EMT DIE CAST COMPRESSION CONNECTORS - Insulated Throat
Average Suggested LABOR HOURS
Description Cat. No. Cost Resale (0-6’) (6-10’) (10-15’) (15-20’)
1/2” 2832 0.47 1.55 0.05 0.06 0.08 0.09
3/4” 2833 0.83 2.70 0.05 0.06 0.08 0.09
1” 2834 1.29 4.25 0.05 0.06 0.08 0.09
1-1/4” 2835 2.40 7.90 0.07 0.09 0.11 0.12
1-1/2” 2836 2.97 9.80 0.09 0.11 0.14 0.16
2” 2838 4.36 14.35 0.12 0.15 0.18 0.21
2-1/2” 2890 12.91 42.65 0.16 0.20 0.24 0.28
3” 2892 15.16 50.00 0.18 0.23 0.27 0.32
3-1/2” 2894 18.97 62.60 0.20 0.25 0.30 0.35
4” 2896 22.10 73.00 0.23 0.29 0.35 0.40
Comparative Die Cast Compression Connectors - Insulated
Description Bridgeport EGS Sepco Steel City
1/2” 250-DCI2 TCI- 601 4060 TC-811-SC
3/4” 251-DCI2 TCI- 602 4061 TC-812-SC
1” 252-DCI2 TCI- 603 4062 TC-813-SC
1-1/4” 253-DCI2 TCI- 604 4063 TC-814-SC
1-1/2” 254-DCI2 TCI- 605 4064 TC-815-SC
2” 255-DCI2 TCI- 606 4065 TC-816-SC
2-1/2” 256-DCI2 TCI- 607 4065D TC-817-SC
3” 257-DCI2 TCI- 608 4065E TC-818-SC
3-1/2” 258-DCI2 TCI- 609 4065E1 TC-819-SC
4” 259-DCI2 TCI- 610 4065F TC-8110-SC
MATERIAL PRICES AND LABOR UNITS ARE PER EACH
NPG/NSG AVERAGE COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
10-4 COPYRIGHT © 1996-2019 by ELECTRICAL RESOURCES, INC.
