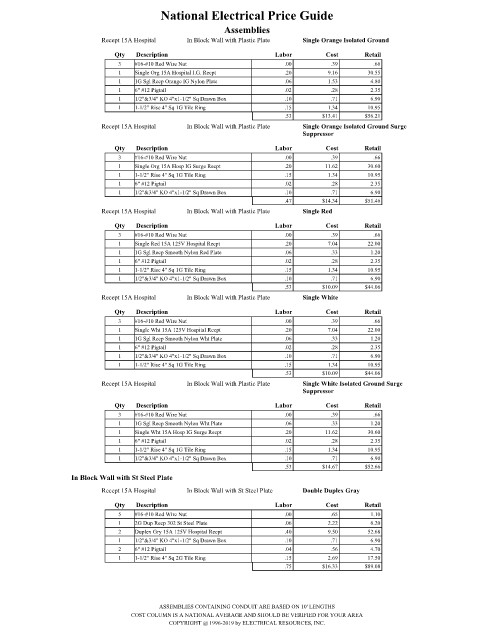

Page 2530 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 15A Hospital In Block Wall with Plastic Plate Single Orange Isolated Ground
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Org 15A Hospital I.G. Recpt .20 9.16 30.55
1 1G Sgl Recp Orange IG Nylon Plate .06 1.53 4.80
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
.53 $13.41 $56.21
Recept 15A Hospital In Block Wall with Plastic Plate Single Orange Isolated Ground Surge
Suppressor
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Org 15A Hosp IG Surge Recpt .20 11.62 30.60
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.47 $14.34 $51.46
Recept 15A Hospital In Block Wall with Plastic Plate Single Red
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Red 15A 125V Hospital Recpt .20 7.04 22.00
1 1G Sgl Recp Smooth Nylon Red Plate .06 .33 1.20
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $10.09 $44.06
Recept 15A Hospital In Block Wall with Plastic Plate Single White

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Wht 15A 125V Hospital Recpt .20 7.04 22.00
1 1G Sgl Recp Smooth Nylon Wht Plate .06 .33 1.20
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
.53 $10.09 $44.06
Recept 15A Hospital In Block Wall with Plastic Plate Single White Isolated Ground Surge
Suppressor
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Sgl Recp Smooth Nylon Wht Plate .06 .33 1.20
1 Single Wht 15A Hosp IG Surge Recpt .20 11.62 30.60
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $14.67 $52.66
In Block Wall with St Steel Plate
Recept 15A Hospital In Block Wall with St Steel Plate Double Duplex Gray

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G Dup Recp 302 St Steel Plate .06 2.22 6.20
2 Duplex Gry 15A 125V Hospital Recpt .40 9.50 52.68
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.75 $16.33 $89.08

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
